400mm Poly Ci Wheel 5000kg Capacity Castor (S1608D)

Wheel Diameter: 400mm

Castor Frame Type: Swivel with Directional Lock

Wheel Width: 125mm

Wheel Type: Polyurethane

Wheel Code: PU1606

Wheel Bearing Type: Taper Roller Bearing

Castor Height: 520mm

Swivel Radius: 295mm

Maximum Load Capacity: 5000kg

Recommended Load Capacity: 3750kg

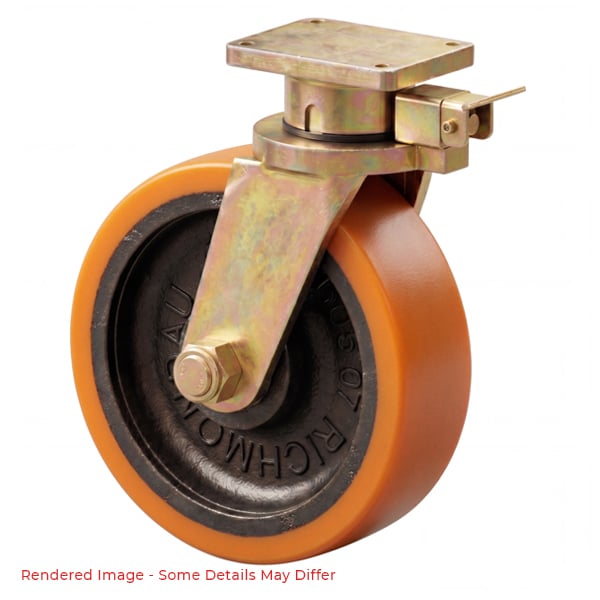

The S1608D by Richmond Wheel and Castor Co. is a swivel frame castor and has a polyurethane tyred cast iron wheel. This swivel castor is one of our 5000 series range and can safely take loads up to 5000kg. The S1608D uses taper roller bearings for wheel rotation. The swivel frame allows for full 360° swivel rotation. The outside diameter of the polyurethane tyred cast iron wheel is 400mm, the wheel width is 125mm and can be ordered separately (PU1606). For the same castor without a direction lock, see S1608.

Product Code S1608D
Wheel Diameter (mm) 400
Frame Type Swivel with Directional Lock
Wheel Width (mm) 125
Wheel Type Polyurethane Tyred Cast Iron Centred
Wheel Code PU1606
Wheel Bearing Type Taper Roller Bearing
Castor Height (mm) 520
Swivel Radius (mm) 295
Maximum Load Capacity (kg) 5000
Australian Manufactured

Australian Manufactured

Swivel with Directional Lock

Swivel with Directional Lock
