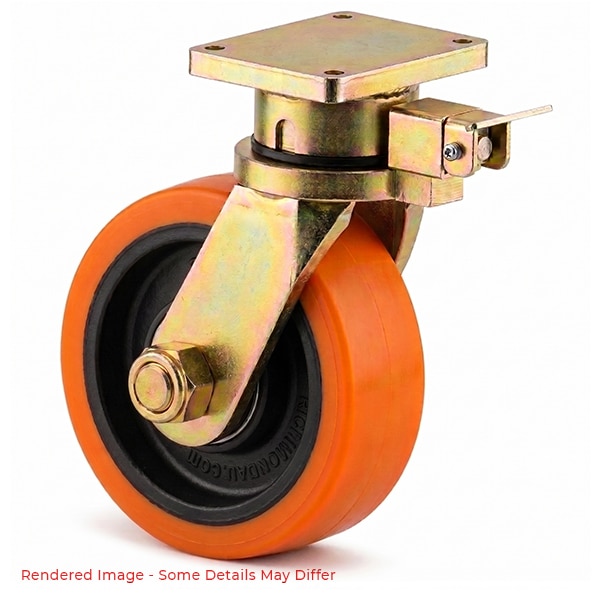

300mm Poly Ci Wheel 5000/3750kg Capacity Castor (S1224D)

Wheel Diameter: 300mm

Castor Frame Type: Swivel with Directional Lock

Wheel Width: 100mm

Wheel Type: Polyurethane

Wheel Code: PU1203

Wheel Bearing Type: Taper Roller Bearing

Castor Height: 420mm

Swivel Radius: 240mm

Maximum Load Capacity: 5000kg

Recommended Load Capacity: 3750kg

The S1224D by Richmond is a swivel frame castor and has a polyurethane tyred cast iron wheel. This swivel castor is part of our 5000 series range and can safely take loads up to 5000kg. The S1224D uses taper roller bearings for wheel rotation. The swivel frame design of this castor allows for full 360° swivel rotation. The polyurethane tyred cast iron wheel diameter is 300mm, the wheel width is 100mm and can be ordered separately (PU1203). This model can also be ordered without the direction lock (part number S1224).

View Specifications View Specifications Shipping Information

Specifications

Product Code	S1224D
Wheel Diameter (mm)	300
Frame Type	Swivel with Directional Lock
Wheel Width (mm)	100
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU1203
Wheel Bearing Type	Taper Roller Bearing
Castor Height (mm)	420
Swivel Radius (mm)	240
Maximum Load Capacity (kg)	5000
