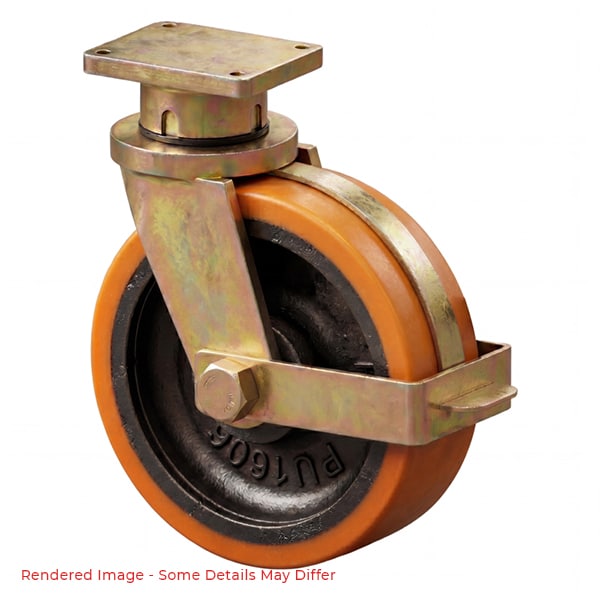

400mm Poly Ci Wheel 5000/3750kg Capacity Castor (S1608B)

Wheel Diameter: 400mm

Castor Frame Type: Swivel with Brake

Wheel Width: 125mm

Wheel Type: Polyurethane

Wheel Code: PU1606

Wheel Bearing Type: Taper Roller Bearing

Castor Height: 520mm

Swivel Radius: 295mm

Maximum Load Capacity: 5000kg

Recommended Load Capacity: 3750kg

The S1608B manufactured by Richmond is a swivel frame castor and uses a polyurethane tyred cast iron wheel. This swivel castor is in our 5000 series range and has a top load capacity of 5000kg. The S1608B wheel is fitted with taper roller bearings. The swivel frame design of this castor allows the load to be steered. The diameter of the polyurethane tyred cast iron wheel is 400mm, the wheel width is 125mm and you can order separately (Part Number: PU1606). For the same castor without a brake, see S1608.

View Specifications View Specifications Shipping Information

Specifications

Product Code	S1608B
Wheel Diameter (mm)	400
Frame Type	Swivel with Brake
Wheel Width (mm)	125
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU1606
Wheel Bearing Type	Taper Roller Bearing
Castor Height (mm)	520
Swivel Radius (mm)	295
Maximum Load Capacity (kg)	5000
