Wheel Diameter: 250mm
Castor Frame Type: Swivel with Directional Lock
Wheel Width: 100mm
Wheel Type: Polyurethane
Wheel Code: PU1049
Wheel Bearing Type: Taper Roller Bearing
Castor Height: 370mm
Swivel Radius: 210mm
Maximum Load Capacity: 5000kg
Recommended Load Capacity: 3750kg

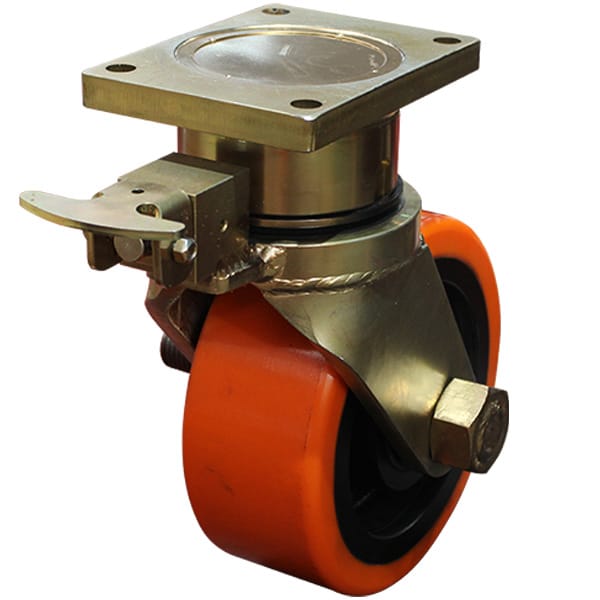

The S1093D manufactured by Richmond Rolling Solutions is a swivel frame castor and features a polyurethane tyred cast iron wheel. This swivel castor is one of our 5000 series range and has a maximum capacity of 5000kg. The S1093D uses taper roller bearings for wheel rotation. The swivel frame design of this castor allows the castor to swivel 360°. The polyurethane tyred cast iron wheel diameter is 250mm, the wheel width is 100mm and you can order separately (Part Number: PU1049). For the same castor without a direction lock, see S1093.
Australian Manufactured
Swivel
Towable
