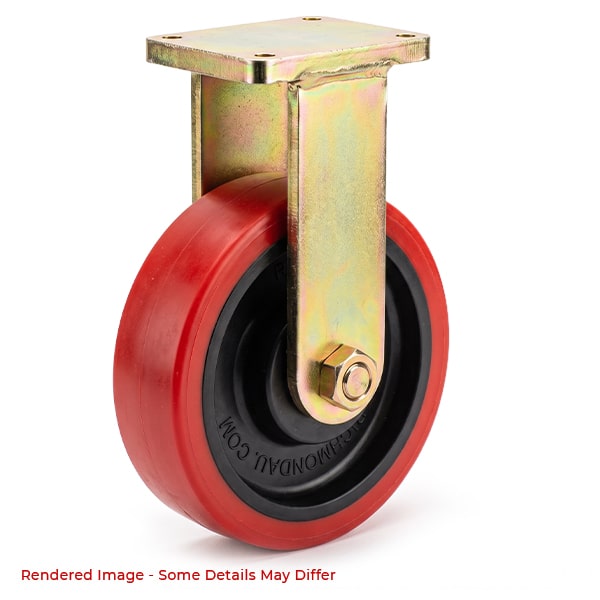

300mm Poly Ci Wheel 5000/3750kg Capacity Castor (R1223)

Wheel Diameter: 300mm

Castor Frame Type: Rigid

Wheel Width: 100mm

Wheel Type: Polyurethane

Wheel Code: PU1203

Wheel Bearing Type: Taper Roller Bearing

Castor Height: 420mm

Maximum Load Capacity: 5000kg

Recommended Load Capacity: 3750kg

The R1223 by Richmond Rolling Solutions is a rigid frame castor and has a polyurethane tyred cast iron wheel. This rigid castor is one of our 5000 series range and can hold loads up to 5000kg. The R1223 is assembled with taper roller bearings on the castors axle. This castors rigid frame only allows linear movement unless used with swivel castors. The polyurethane tyred cast iron wheel diameter is 300mm, the wheel width is 100mm and you can order separately (Part Number: PU1203).

View Specifications View Specifications Shipping Information

Specifications

Product Code	R1223
Wheel Diameter (mm)	300
Frame Type	Rigid
Wheel Width (mm)	100
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU1203
Wheel Bearing Type	Taper Roller Bearing
Castor Height (mm)	420
Swivel Radius (mm)	240
Maximum Load Capacity (kg)	5000
