Workbench Castors Kit - Quick Release Mounting Plates (WBC002SET)

The quick-release castor mounting plates included with this kit allow you to remove the castors from your bench when not in use. Once the quick-release plates are mounted to your workbench, simply lift the spring-loaded latch to slide your castor plates into place.

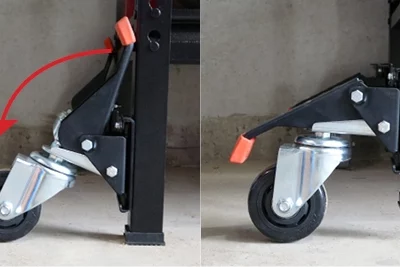

To operate, press down on the foot pedal of each castor to elevate your workbench, and move to your desired location. To disable movement, lift the foot pedal to lower the workbench firmly back onto the floor, and lift the spring-loaded latch again to remove your castors.

Each 75mm (3”) polyurethane castor can support up to 100kg (400kgs combined set capacity). Each swivel castor can pivot 360° once raised. All required mounting hardware is included.

• Suitable for workbenches up to 400kg
• 4 quick-release mounting plates included
• 4 free-swivelling 75mm (3”) diameter polyurethane castors included
• Simple to operate
• Wrenches, M6x75mm countersunk bolts, nuts and washers included

Click here to download instruction manual.
