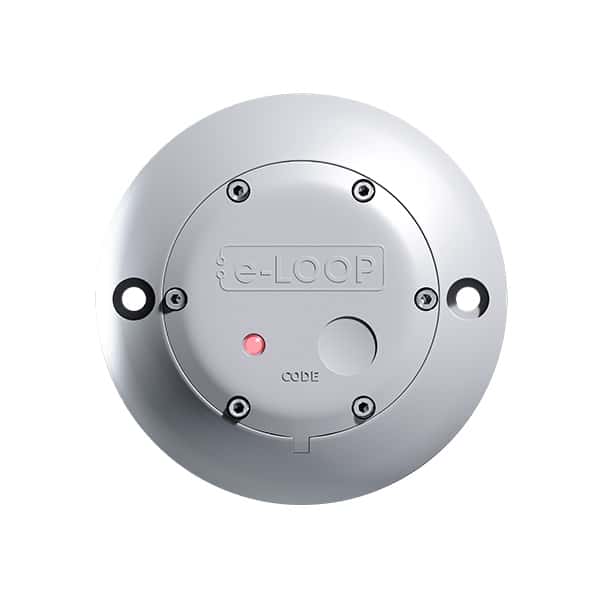

Wireless Vehicle Detection System - Micro e-Loop (GTR163)

Wireless Vehicle Detection System - Micro e-Loop (GTR163) - Image 2

Wireless Vehicle Detection System - Micro e-Loop (GTR163) - Image 3

Wireless Vehicle Detection System - Micro e-Loop (GTR163) - Image 4

Wireless Vehicle Detection System - Micro e-Loop (GTR163)

$350.00 ex. GST

$402.50 inc. GST

Available Online

Designed to be to be easily integrated into any gate system: the e-Loop micro is the perfect product for any gate installer. The e-loop micro offers cost effective exit automation with quick and easy installation.

Up to 25m range
Includes a CR123a battery with a lifespan of up to 2 years
Ultra compact design
Compact Diameter of ~110mm

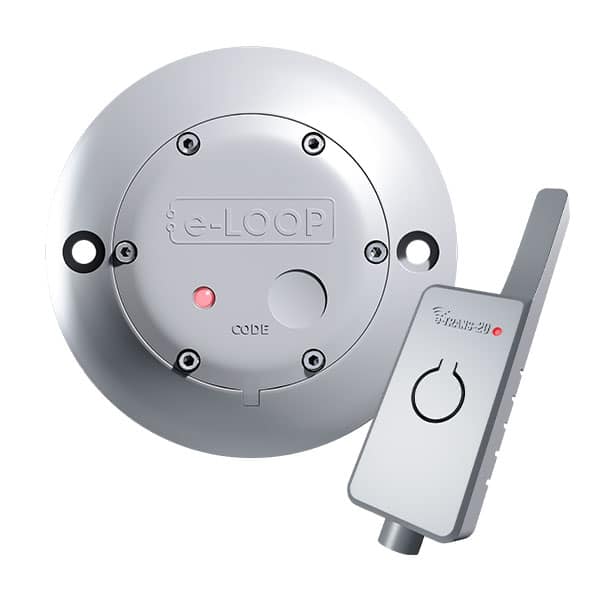

Includes a e-Trans 20 transceiver for quick connection to your gate motor
High security 128-Bit AES Encryption
Quick Non-Permanent Installation
Set-and-Forget auto calibration
Available in Exit mode
2500kg maximum capacity

This accessory is compatible with all Richmond gate openers.

*To pair this product to the GTR058 double swing gate opener an adaptor must be fitted. Adaptor part number: 5GTR147SP002 (sold separately)

View Specifications View Specifications Shipping Information

Description

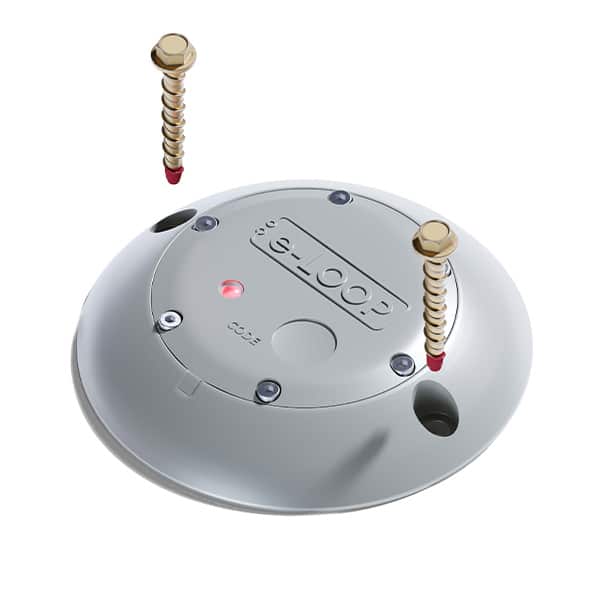

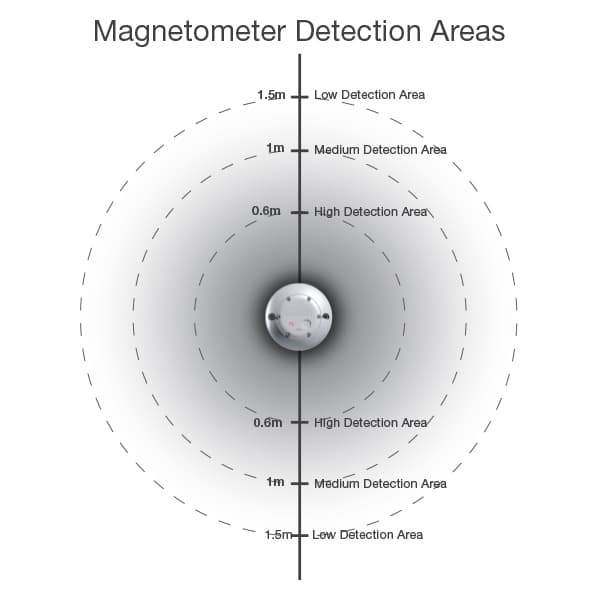

The e-Loop Micro’s Vehicle Detection System relies on magnetometer sensors to detect approaching vehicles. Upon detection, the system transmits this information to a nearby Microtech transceiver, facilitating gate activation/traffic control. Installation involves affixing sensors to the surface of entry or exit passages using dyna-bolts. These sensors are designed to withstand the rigors of vehicle traffic.

Product Code	GTR163
Range	Up to 25 metres
Encryption	128-bit AES
Battery Type	CR123A
Diameter (mm)	110

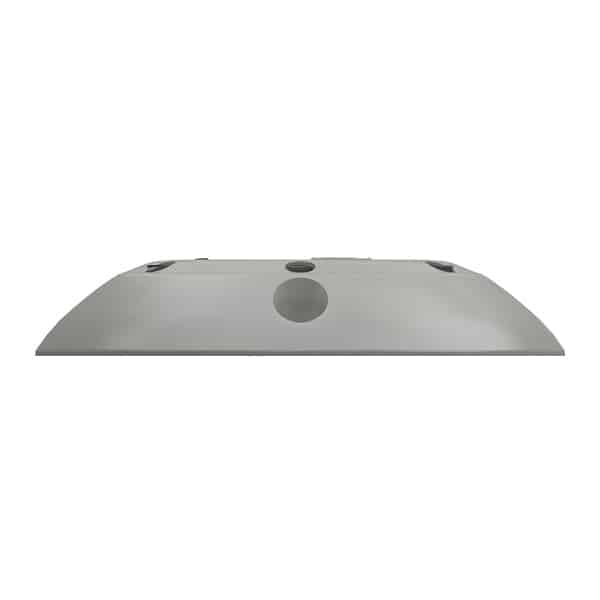

Height (mm)	23
Frequency	433.39 MHz
Modulation	FSK
Power	3.6V 1500ma
Weight	200g
Operating Temp	-40 to 80 degrees
