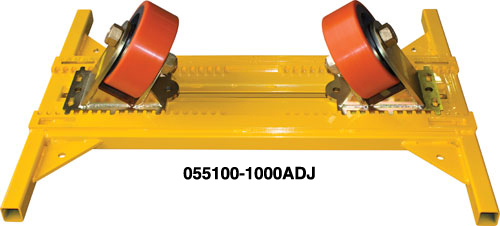

Precision Adjustable Pipeline Rollers

Richmond Wheel and Castor Co would like to introduce a new innovation in low profile pipe roller design to service the exacting demands of the Australian Pipeline Industry.

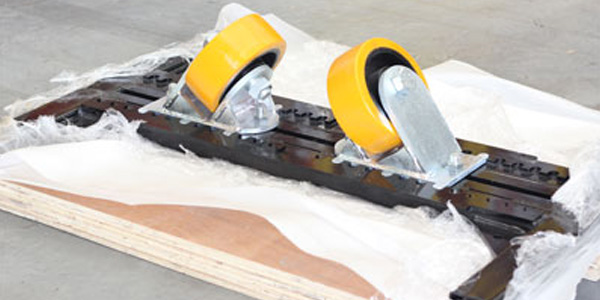

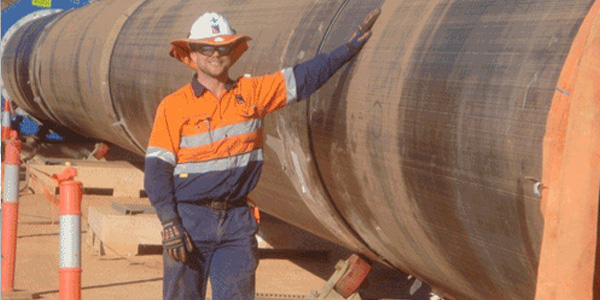

Using our wheel making know how a multi purpose adjustable low profile pipe roller has been designed and manufactured for use in the installation of gas lines and pipe launching projects. The economical combination of the large diameter heavy duty polyurethane rollers, transportable base and 1” increment adjustability allows for a multiple of installations as well as being totally reusable. The new Precision Pipeline Roller is designed and built in house at our Clayton Assembly Plant.

Taking an average time of 5 minutes per frame, adjusting of the rollers is done in 3 simple steps:

1. Simply loosen the bolts that hold the roller frames to the base frame
2. Slide the frame sideways till the arrow on the base plate aligns with the reference number that refers to the nominal bore size of the pipe you wish to launch
3. Tighten the bolts to secure the frame to the base. The rollers are now secured in the correct position to safely launch the required pipe diameter.
3. Tighten the bolts to secure the frame to the base. The rollers are now secured in the correct position to safely launch the required pipe diameter.

Depending on your requirements we have 4,000kg or 10,000kg models available to suit pipe diameters from:
• 8-20″ nominal bore
• 8-40″ nominal bore
• 8-88″ nominal bore

For over 50 years Richmond has been a leader in providing turn key rolling solutions, heavy duty wheels, flange wheels, polyurethane rollers and all types of pipe rollers including; Bogey system transitional rollers, pipe loading rollers and pipe supports.
