SupportR Height Adjustable Flat Profile Roller
Flat profile, lightweight, height adjustable solution for supporting loads up to 60kg per roller. Folds flat for neat storage.
| ROLLER WIDTH | HEIGHT RANGE | LOAD CAPACITY (KG) | PRODUCT CODE |
| 280mm | 680-1080mm | 60 | CSR005 |

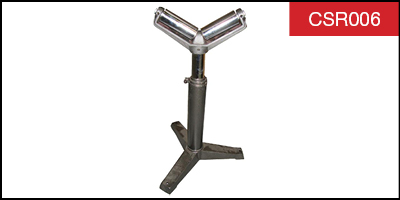

Height Adjustable V Profile Roller
V profile, height adjustable roller stand. Ideal for supporting bar stock for bandsaws or supporting pipe while welding.
| ROLLER WIDTH | HEIGHT RANGE | LOAD CAPACITY (KG) | PRODUCT CODE |
| CSR006 |
Height Adjustable V Profile HDPE Pipe Handling Assembly
The CSR 007 is the perfect accessory for any HDPE/PE pipe laying project. Suitable for pipes from 50mm to 600mm diameter with a load capacity of 500kg.
Each assembly is light enough for one person to move position and adjust the height. Using the length of chain allows for the heigth of the rollers to be adjusted from 200mm to 1000mm off the ground. The assembly can be completely flattened for shipping with no overhang on a standard pallet.
| PIPE DIAMETER RANGE | HEIGHT RANGE | LOAD CAPACITY (KG) | WEIGHT (KG) | PRODUCT CODE |
| 50mm-600mm | 200mm-1000mm | 500 | 30 | HA01 |

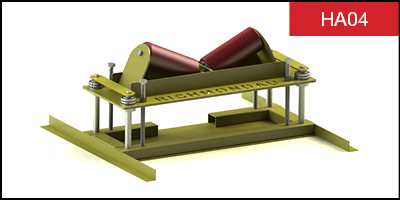

Heavy Duty Stackable Pipe Roller
These high load capacity pipe rollers are stackable and height adjustable using the adjust screws.
| PIPE SIZE RANGE | HEIGHT RANGE | LOAD CAPACITY (KG) | WEIGHT (KG) | ROLLER TYPE | PRODUCT CODE |
| 50-750mm | 180mm-470mm | 1000 | 60 | Twin V Polyurethane | HA04 |

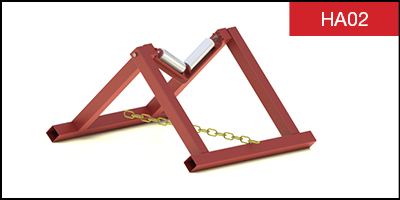

Heavy Duty Height Adjustable V Profile HDPE & Steel Handling Assembly
With higher capacity and large pipe sizes, this unit is suited to lightweight steel handling applications and heavy duty HDPE/PE applications such as feed rollers for fusion welding.
| PIPE SIZE RANGE | HEIGHT RANGE | LOAD CAPACITY (KG) | WEIGHT (KG) | ROLLER TYPE | PRODUCT CODE |
| 50mm-1000mm | 200mm-1100mm | 1000 | 55 | Galvanised Steel | HA02 |
Light Duty Height Adjustable Pipe Roller
Specifically for small diameter HDPE/PE pipe handling applications, this product is small, simple and extremely lightweight. One person can easily position and adjust this product without assistance.
Different pipe diameters are fitted by sliding the rollers wider or closer to each other and securing in place with grub screws supplied.
| PIPE SIZE RANGE | HEIGHT RANGE | LOAD CAPACITY (KG) | WEIGHT (KG) | ROLLER TYPE | PRODUCT CODE |
| 25-450mm | 200mm-1100mm | 500 | 15 | Twin Nylon Cone Rollers | HA04 |

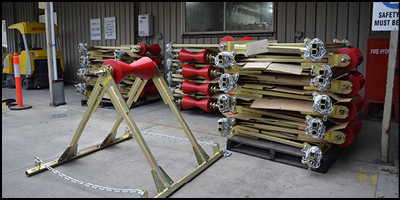

Heavy Duty Height Adjustable Pipe Roller With Polyurethane Tyre
Best choice for heavy duty HDPE/PE pipe applications, coated steel pipe and fibreglass pipe handling. The polyurethane roller is non-marking and gentle on pipe surfaces, reducing risk of damage during pipe handling.
| PIPE SIZE RANGE | HEIGHT RANGE | LOAD CAPACITY (KG) | WEIGHT (KG) | ROLLER TYPE | PRODUCT CODE |
| 50mm-100mm | 200mm-1100mm | 800 | 75 | Single V Polyurethane | HA03 |

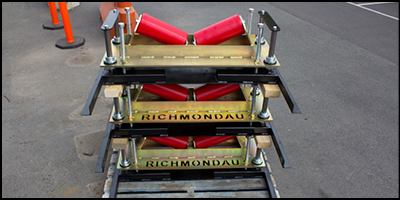

Heavy Duty Stackable Pipe Roller
These high load capacity pipe rollers are stackable and height adjustable using the adjust screws.
| PIPE SIZE RANGE | HEIGHT RANGE | LOAD CAPACITY (KG) | WEIGHT (KG) | ROLLER TYPE | PRODUCT CODE |
| 50mm-750mm | 180mm-470mm | 1000 | 60 | Single V Polyurethane | HA05 |
Light Duty Low Profile Height Adjustable Pipe Roller With Manual Bottle Jacks for Height Adjustment
Excellent small pipe handling unit with the quickest adjustment method. Also available with Polyurethane rollers.
| PIPE SIZE RANGE | HEIGHT RANGE | LOAD CAPACITY (KG) | WEIGHT (KG) | ROLLER TYPE | PRODUCT CODE |
| 50mm-500mm | 180mm-470mm | 300 | 25 | Twin Steel | HA06A |
| 50mm-500mm | 200mm-600mm | 600 | 50 | Twin Steel | HA06B |
