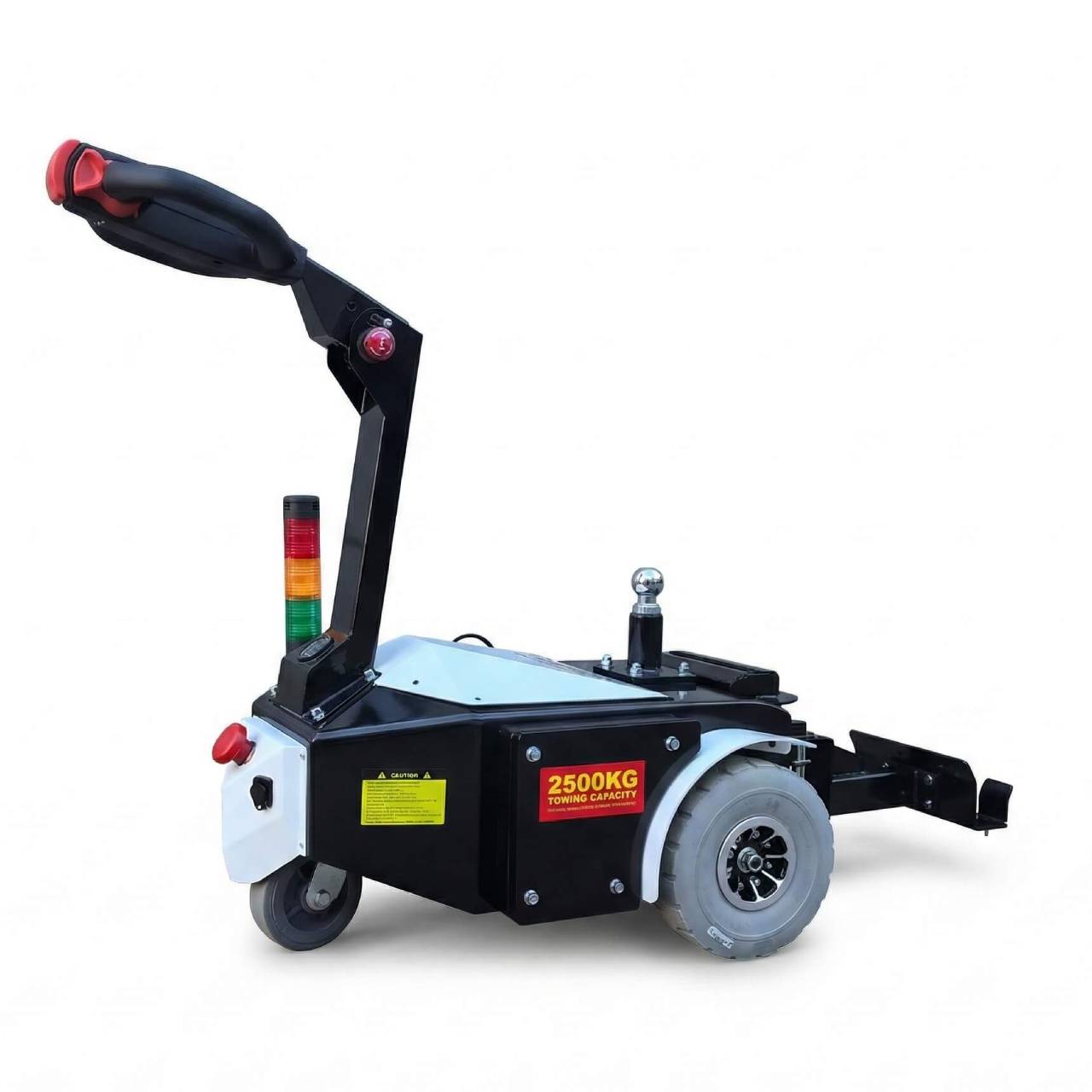

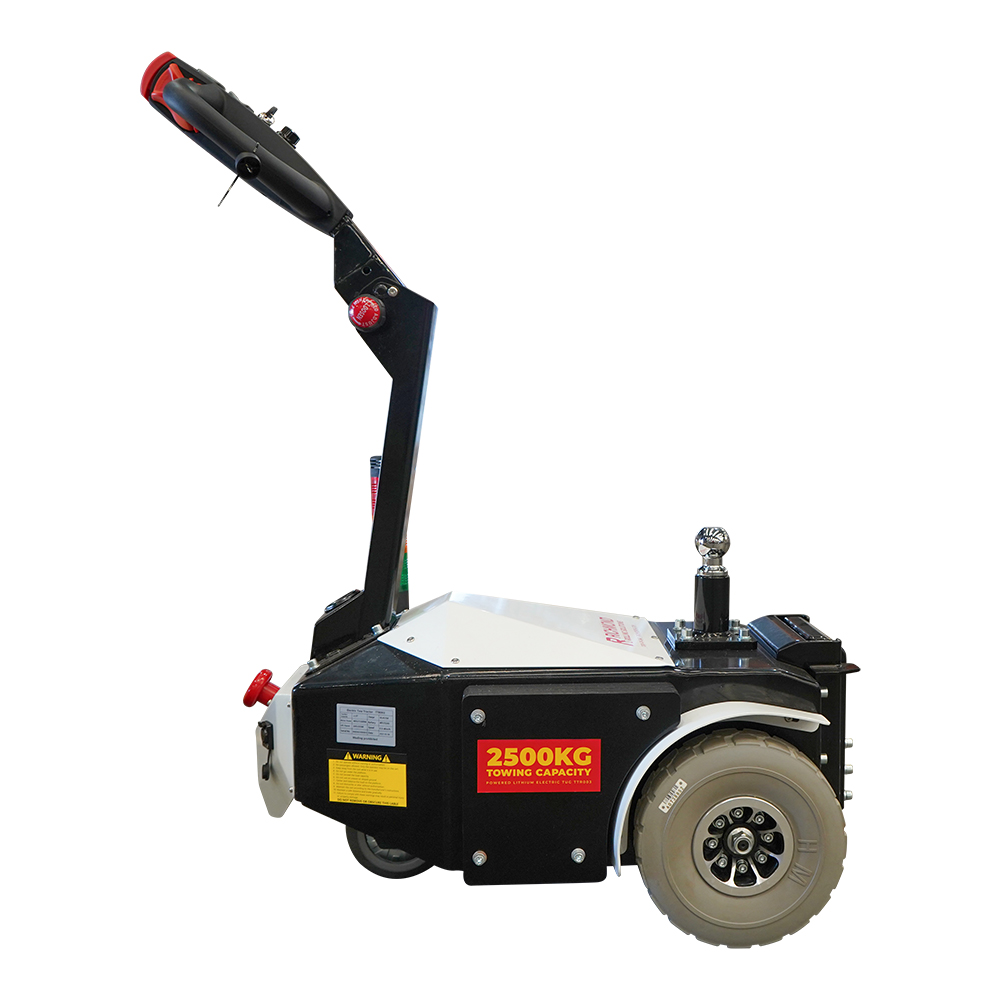

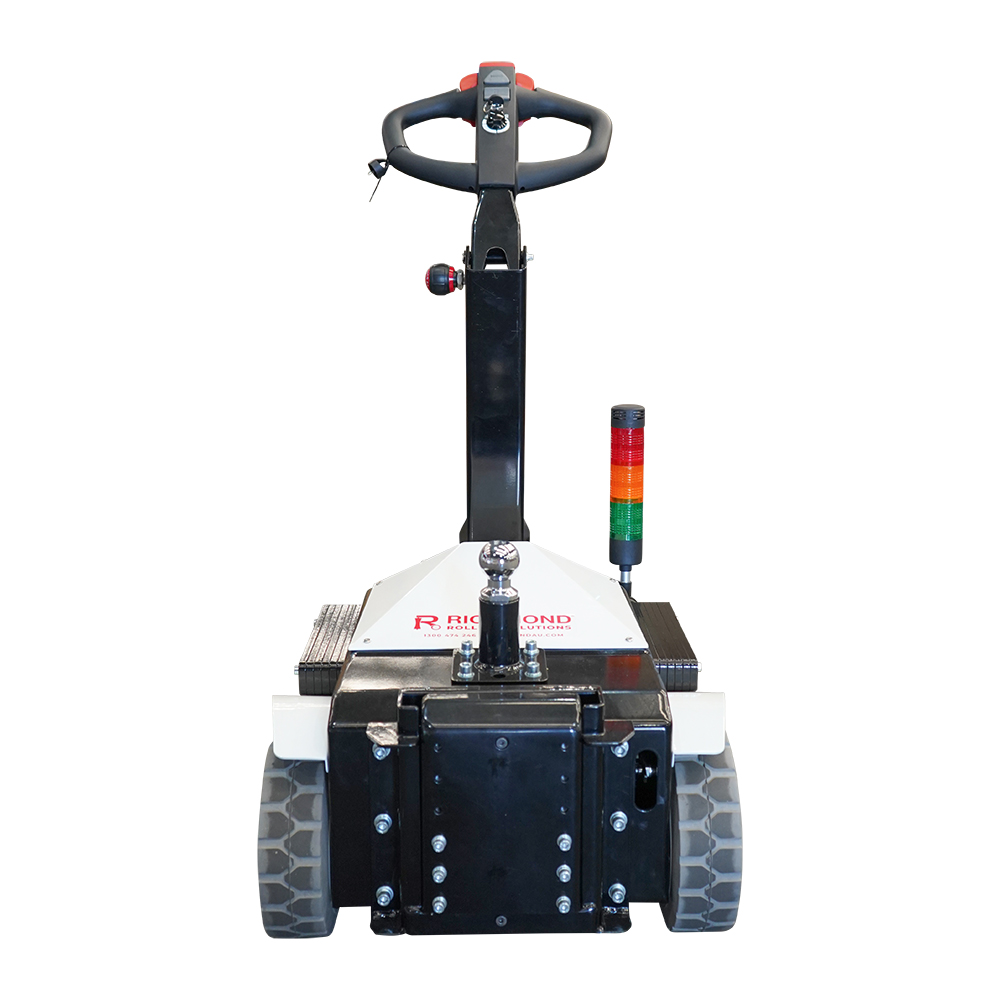

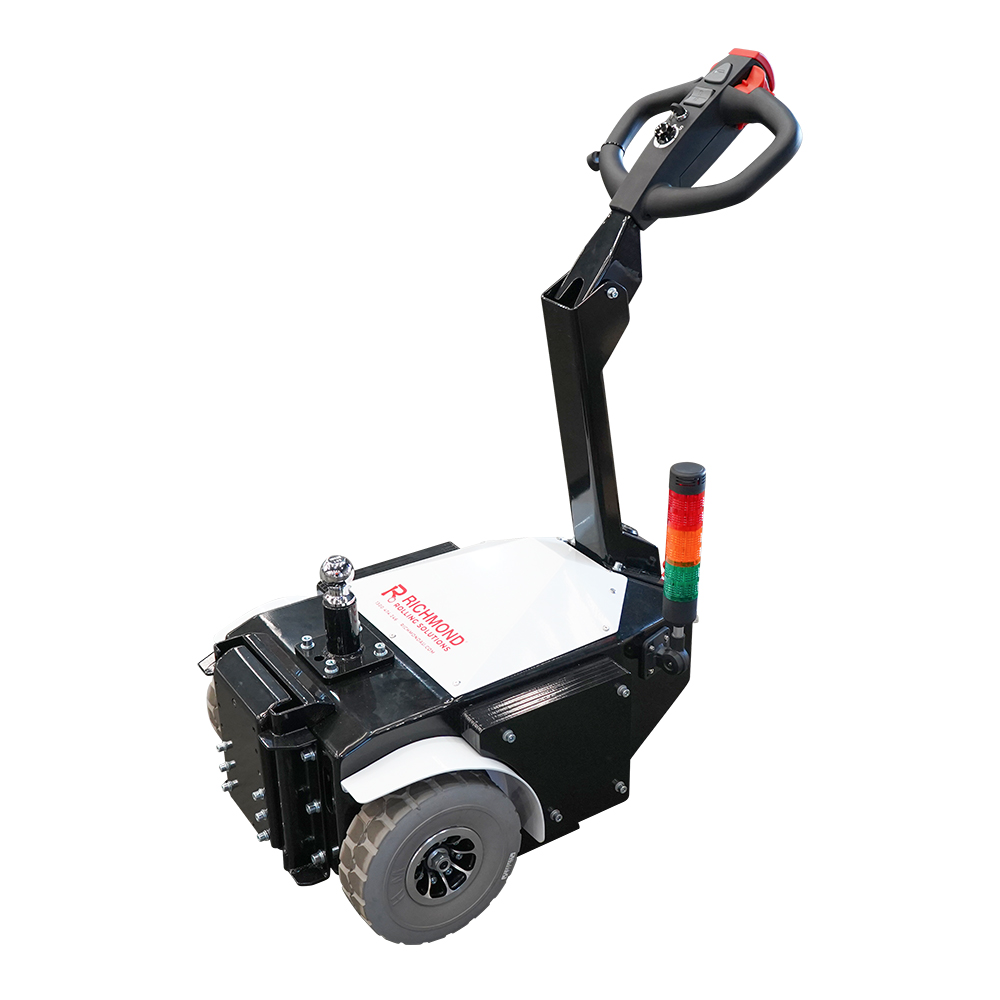

The TTR003 is a Lithium Battery Powered electric tug designed for moving loads up to 2.5 tonnes, offering controlled handling, variable speed operation, and a heavy-duty steel chassis for warehouse and industrial load movement.
- 2.5 Tonne towing capacity: Suitable for moving heavy loads in industrial, warehouse or commercial environments
- 48V 1500W DC motor: Provides smooth, consistent torque for controlled starts and stops
- Lithium-ion battery system: 48V 50Ah battery supports opportunity charging and provides a continuous average operating run time of 6 hours.

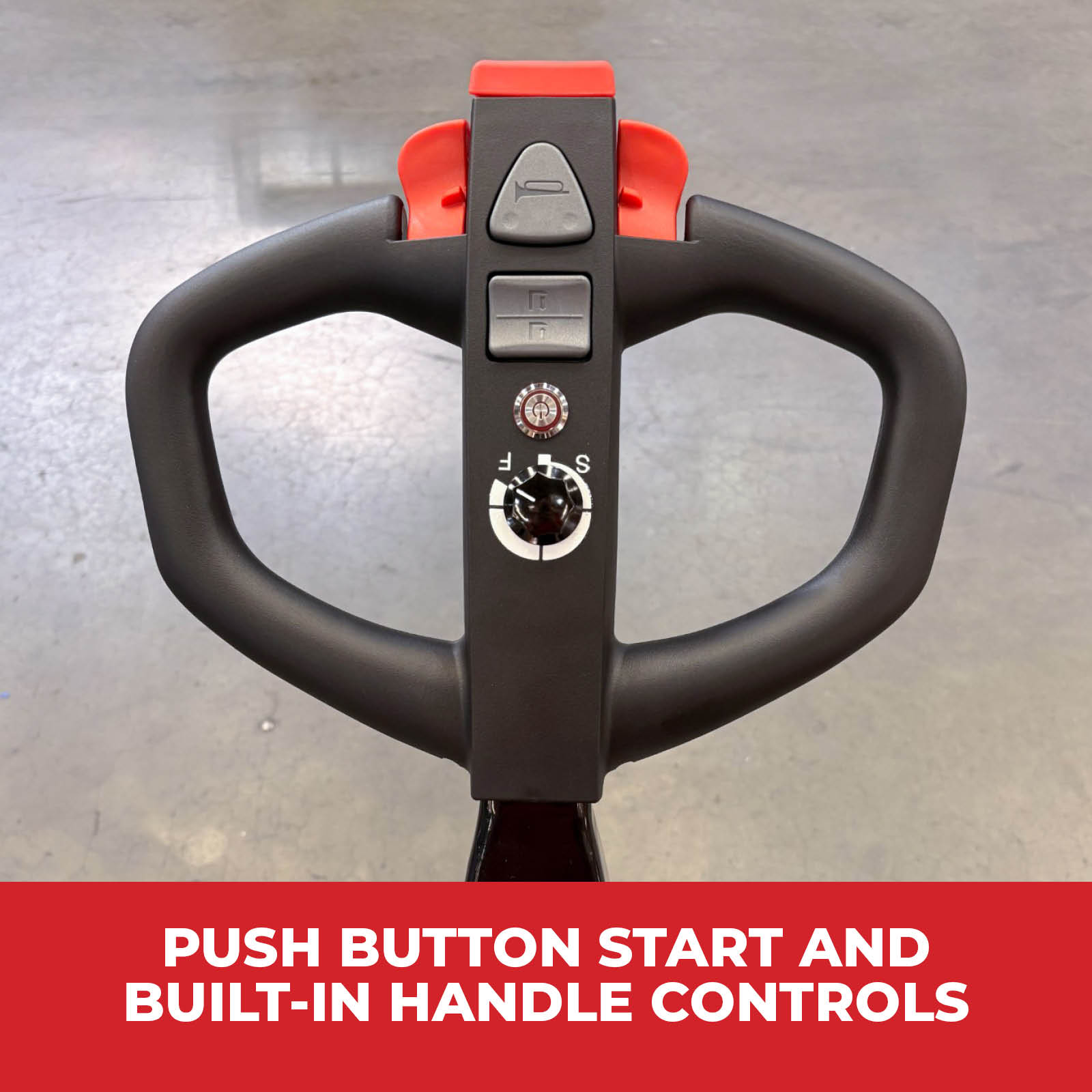

- Push Button Start: Easy one-touch operation for quick on/off operation.

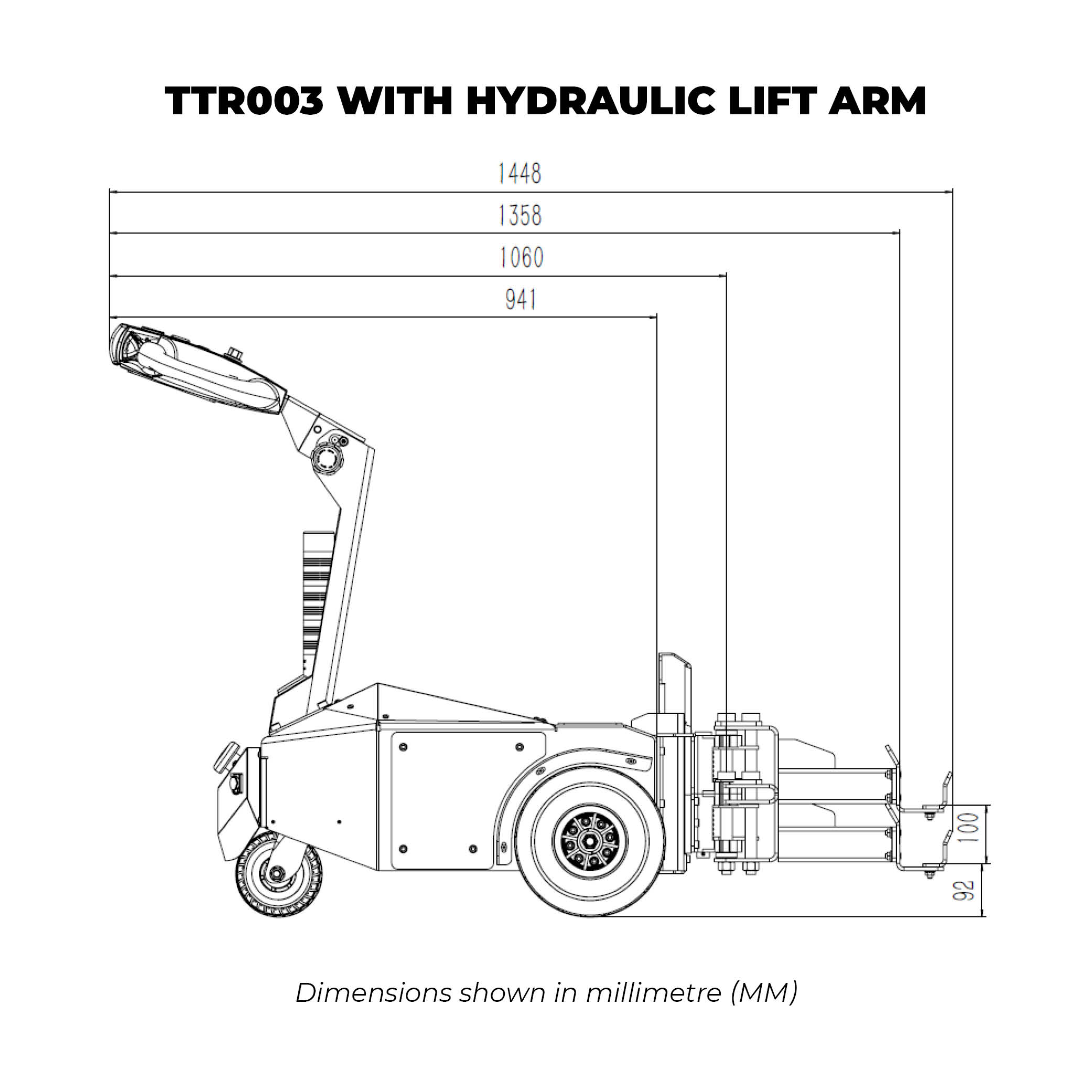

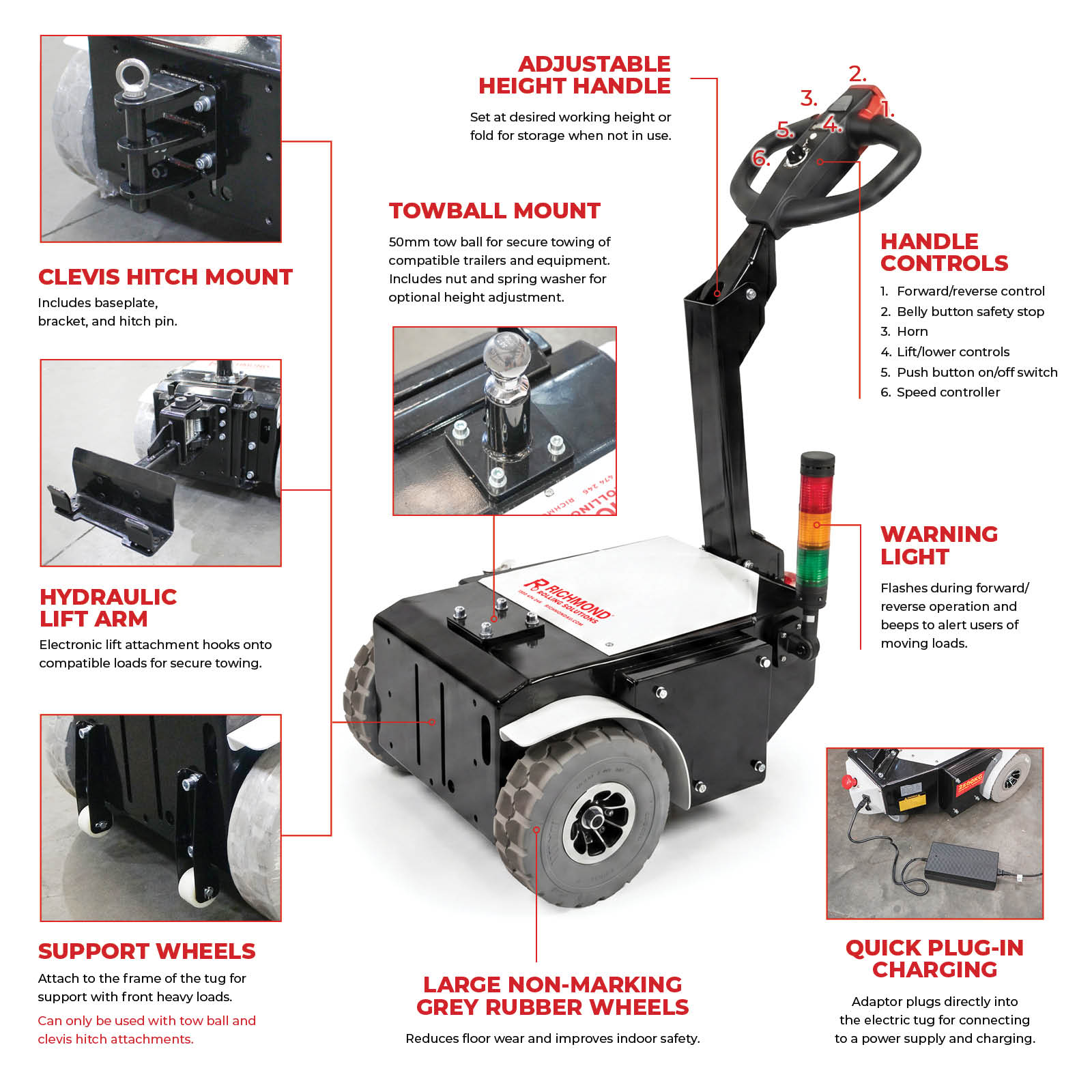

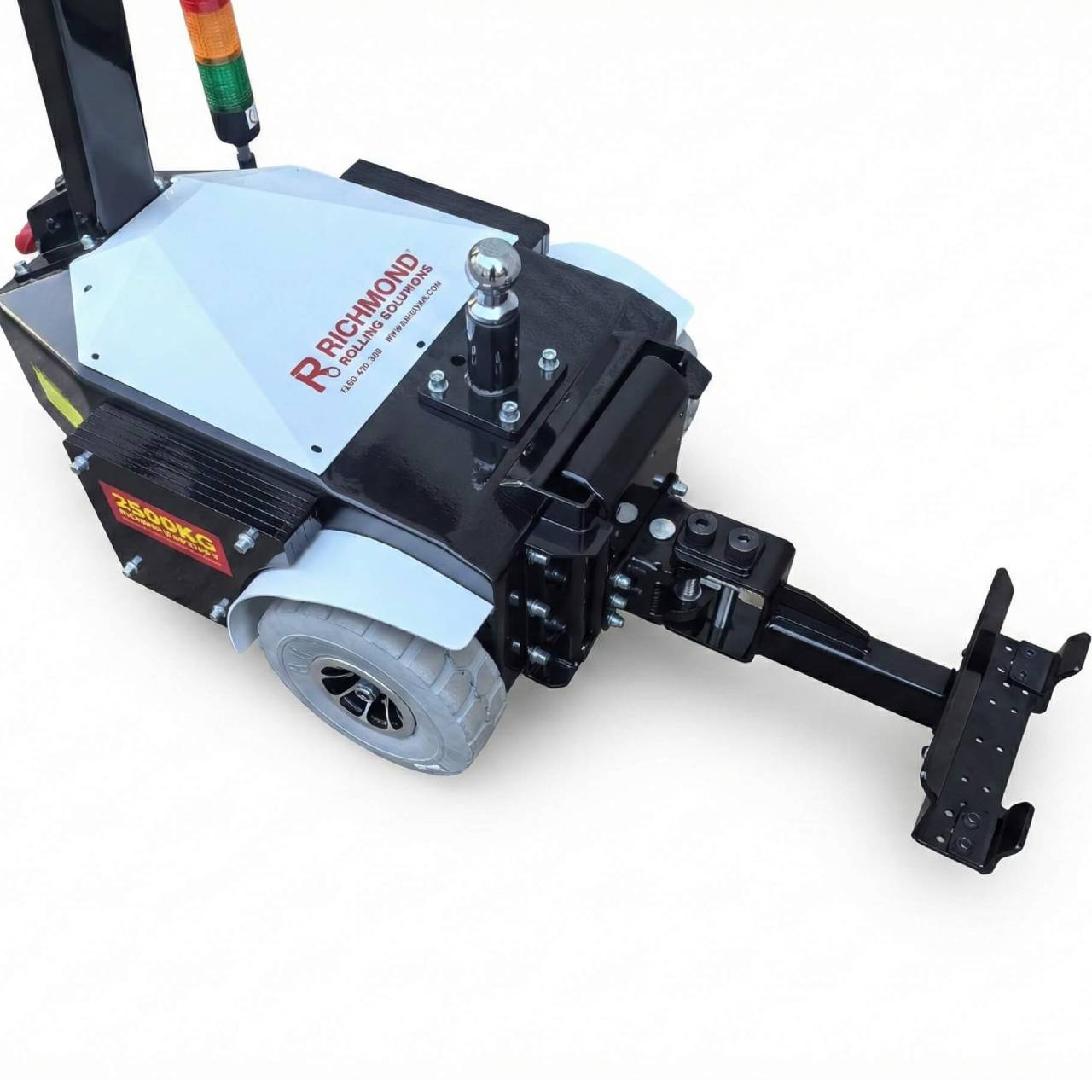

- Versatile towing attachments: Includes a tow ball, hydraulic lift arm, clevis hitch mount and support wheels, providing flexible connection options.

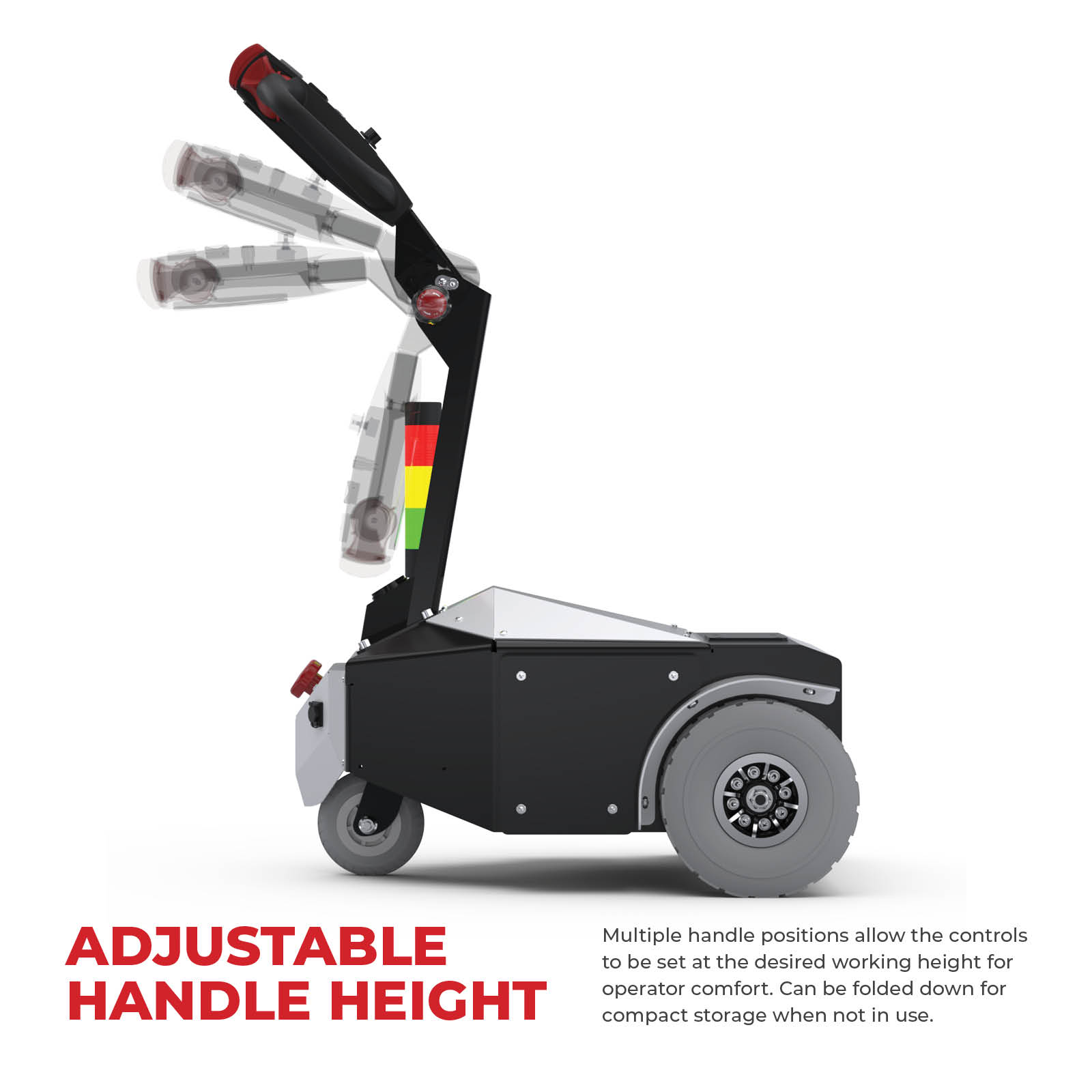

- Ergonomic hand controller: Allows precise operator control between 1 km/h and 4.5 km/h with variable speed adjustment.
- Integrated variable speed controller: Supports controlled manoeuvring for safe positioning and docking tasks.

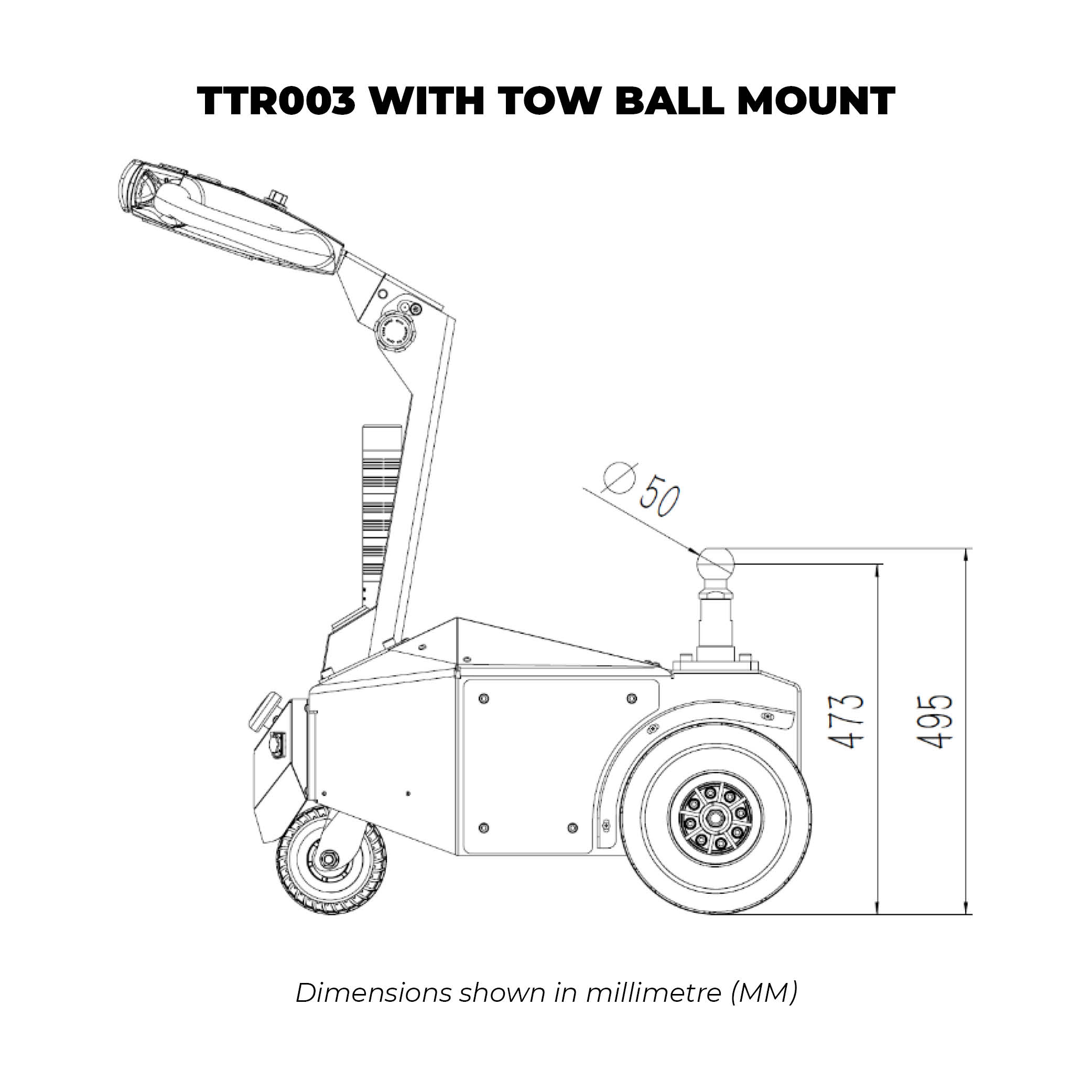

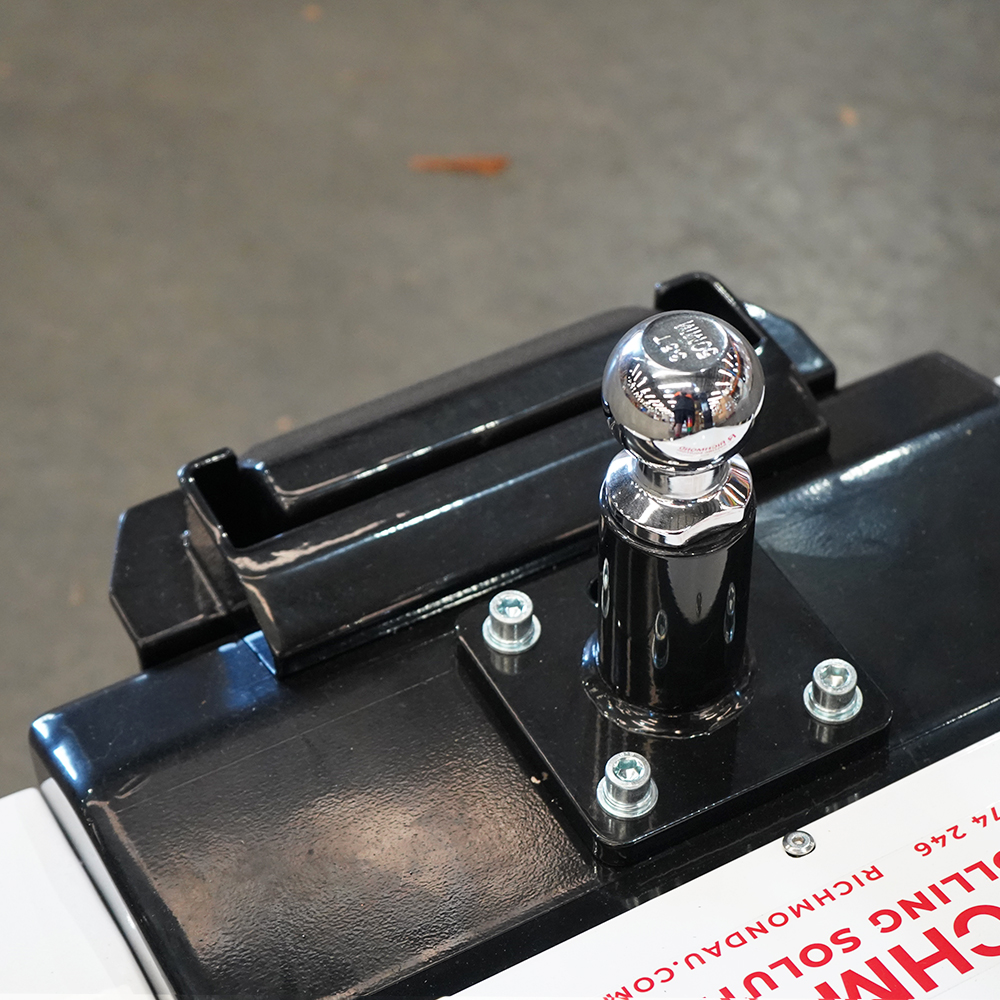

- Electric lift/lower tow ball: 50mm coupling for simple and reliable connection to loads
- Heavy-duty steel body: Built for daily industrial use in demanding environments
- Non-marking grey wheels: Reduces floor wear and improves indoor safety

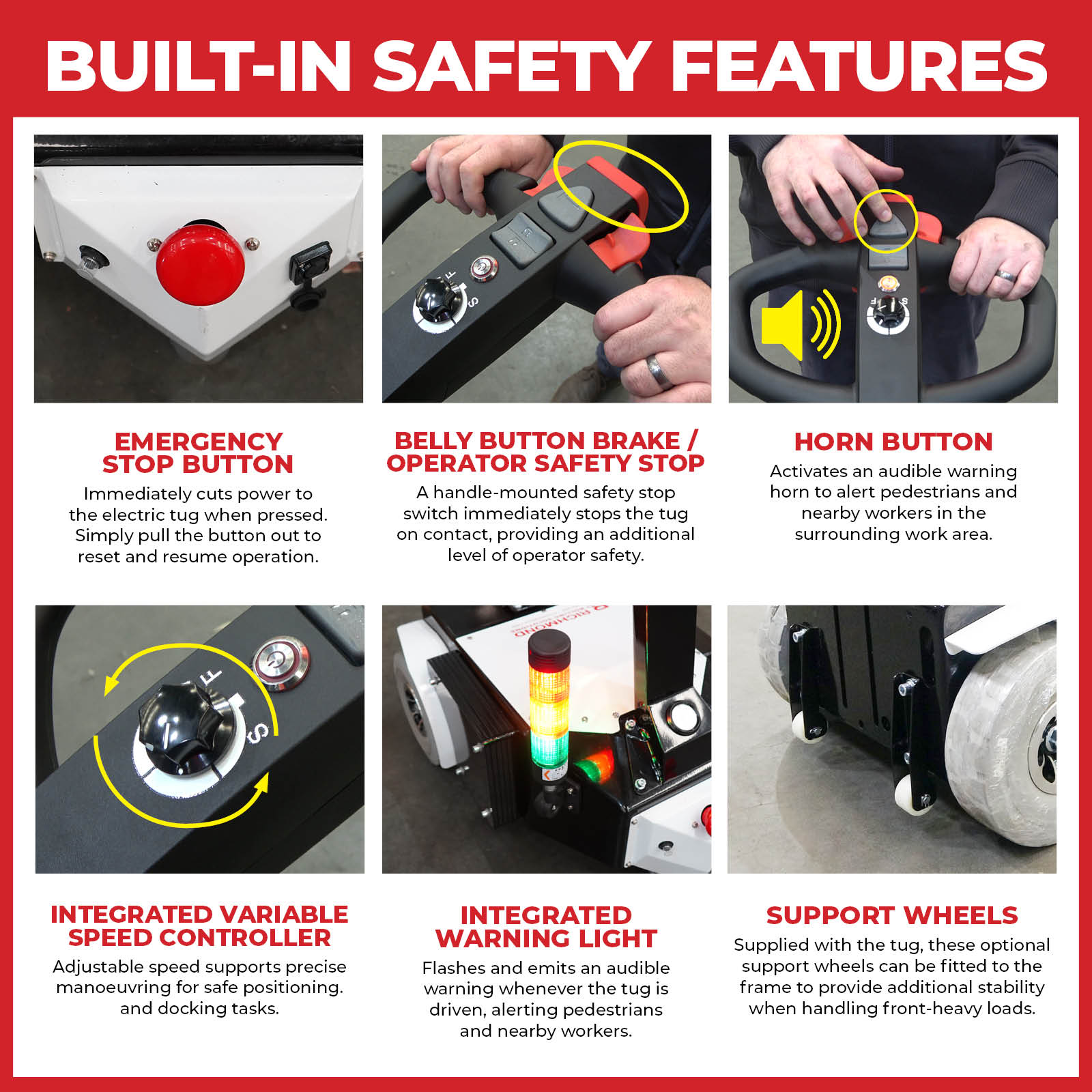

- Integrated safety features: Includes emergency stop buttons, parking brakes, safety reverse switch and a high-visibility safety light for added protection

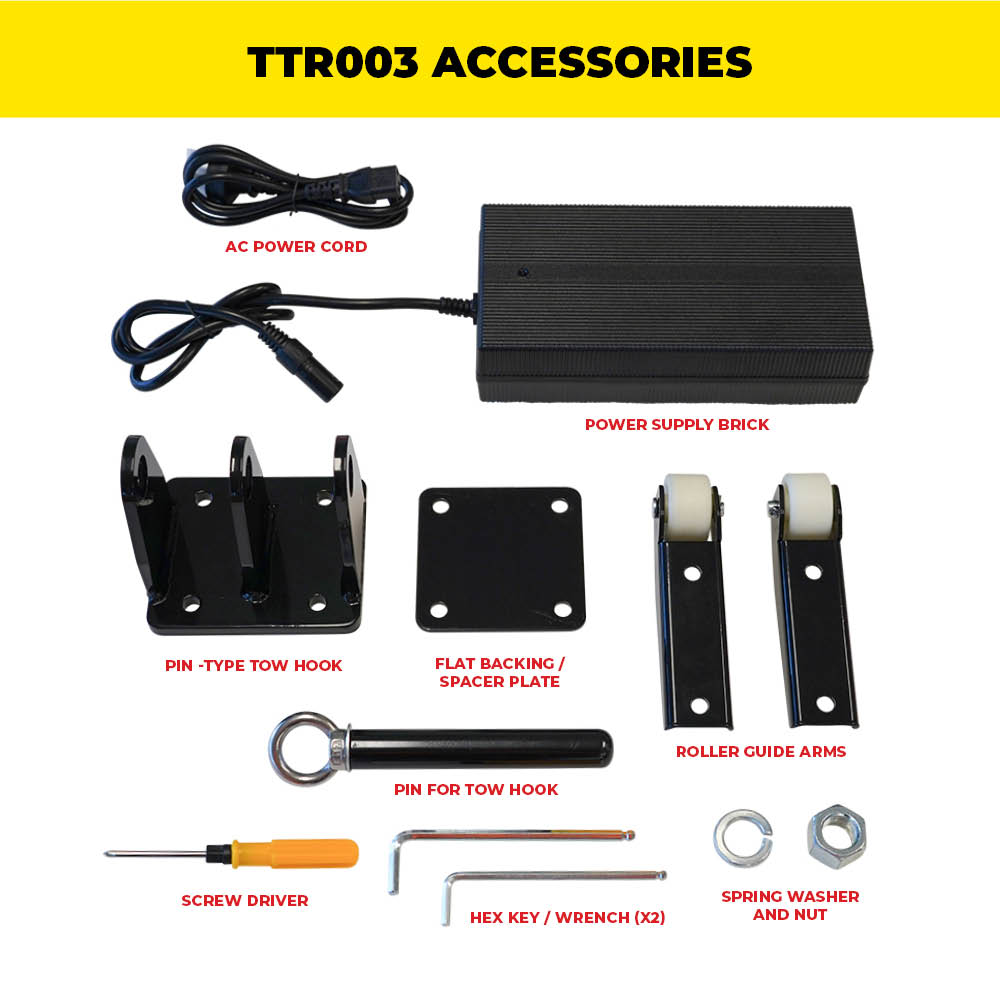

- Complete setup kit: Supplied with a battery charger, power leads, roller guide arms, spacer/cover plate, tow hook pin, fasteners and installation tools for straightforward setup and operation.
- CE Certified: Complies with international standards for safety, health, and environmental protection
Description
The TTR003 Lithium Battery Powered Electric Tug is built to deliver safe, predictable movement of heavy loads in industrial environments. Fitted with a high-torque 48V 1500W DC motor, it provides a consistent drawbar pulling force of 1000N, allowing operators to manoeuvre loads up to 2.5 tonnes with confidence and control. The tug is supplied with a tow ball, hydraulic lift arm, clevis hitch mount and support wheels, along with a battery charger, power leads, mounting hardware and installation accessories. This range of included attachments provides a versatile setup for handling different towing and load-moving applications.

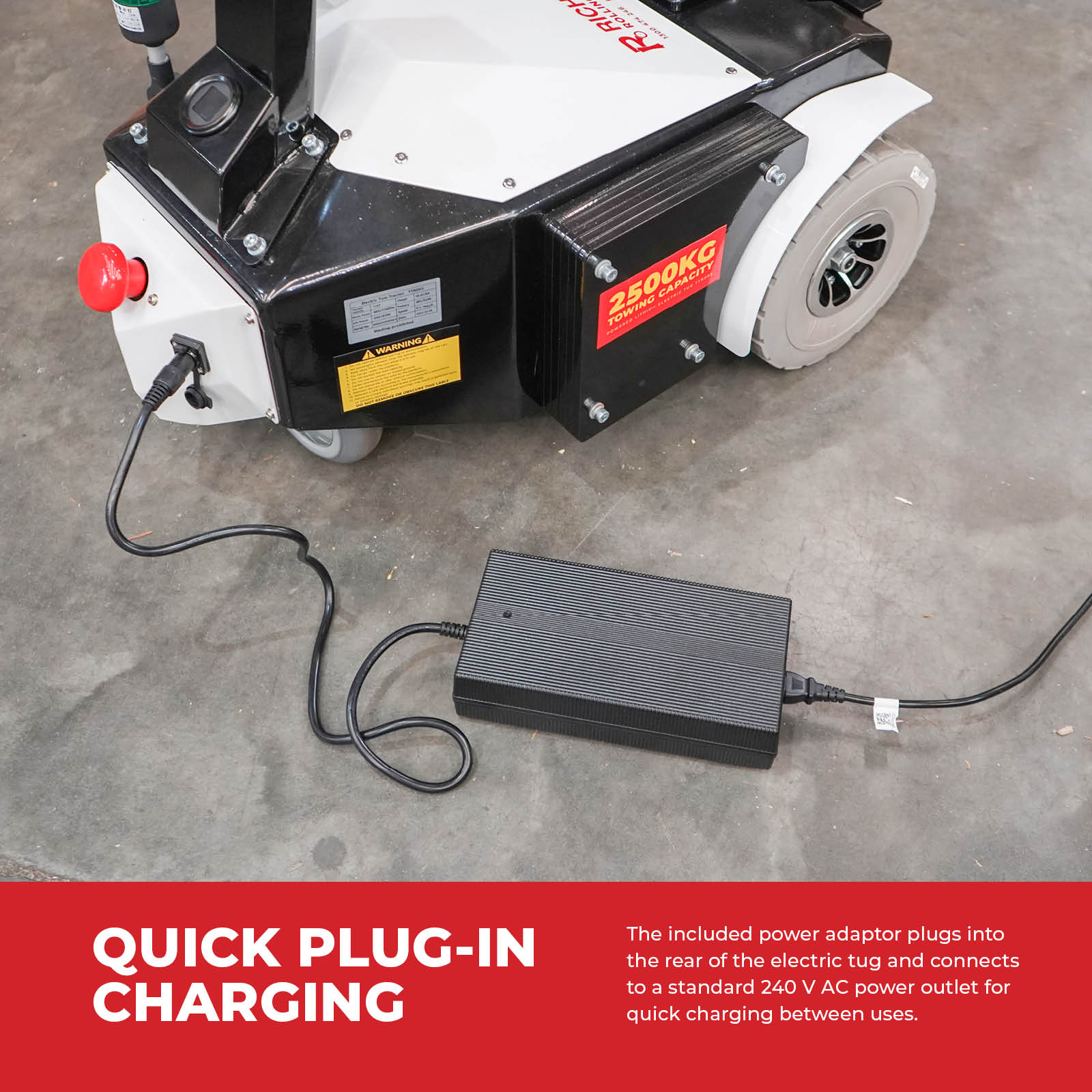

Its 48V 50Ah lithium-ion battery system supports opportunity charging, helping keep the tug in service throughout demanding workflows while reducing downtime associated with traditional lead-acid batteries. The unit is supplied with a 47V 8A charger and is well suited to applications requiring frequent operation across a full shift.
Operators benefit from precise control through the ergonomic hand controller, with adjustable travel speeds from 1 km/h to 4 km/h. A variable speed controller provides smooth acceleration and deceleration, supporting controlled movement in tight spaces and high-traffic areas. Built-in safety features include responsive braking, an emergency stop button, reverse safety switch and high-visibility warning light to improve operator awareness in shared work environments.
Constructed with a durable steel chassis, the TTR003 is designed for ongoing use in warehouses, manufacturing plants, logistics facilities and other commercial environments. Non-marking grey wheels help protect flooring, while the included towing attachments allow the tug to be configured to suit different equipment and connection points.

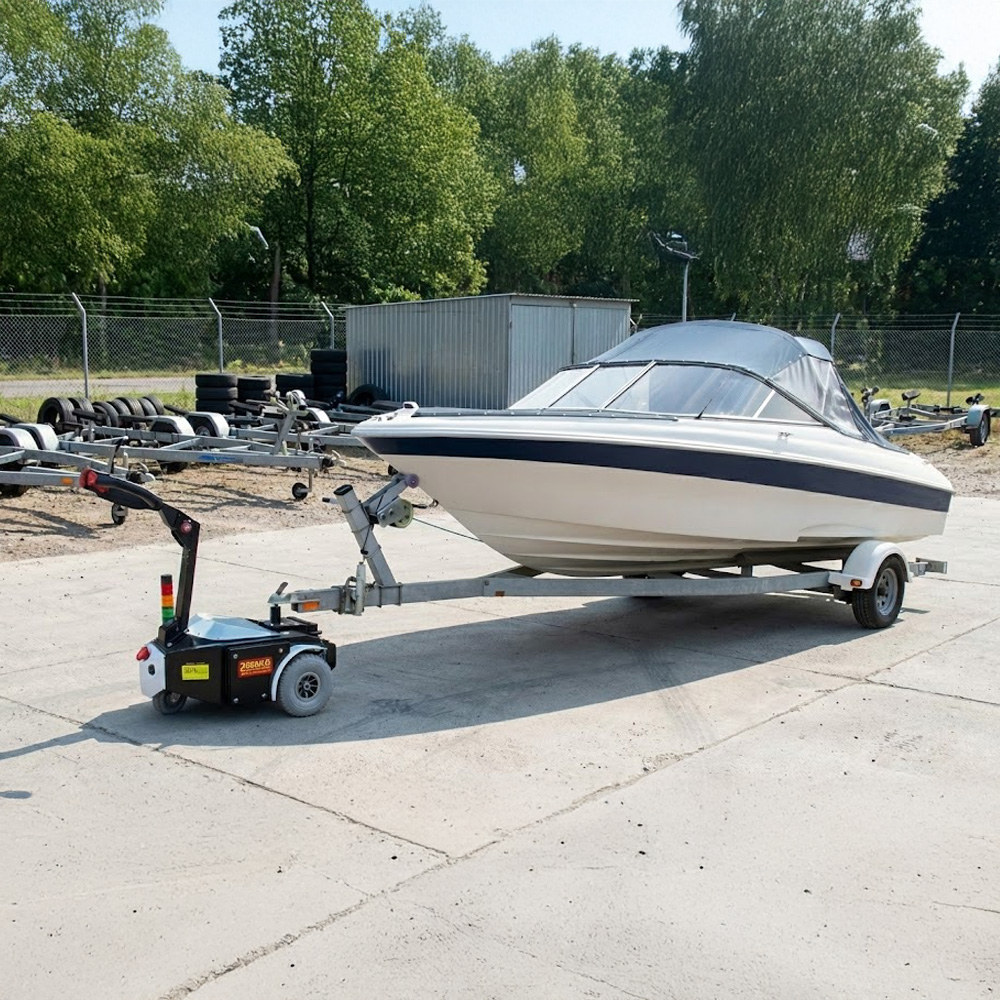

The supplied tow ball, hydraulic lift arm, clevis hitch mount and support wheels increase the TTR003’s versatility across a range of material handling tasks. Depending on the equipment and connection requirements, the tug can be used for moving compatible trailers, wheelie bins, stillage cages, stock trolleys and other wheeled assets commonly found in logistics, facilities maintenance, manufacturing and waste handling operations.
The TTR003 is CE Certified, supporting its use across Australian and international industrial and commercial sites.
