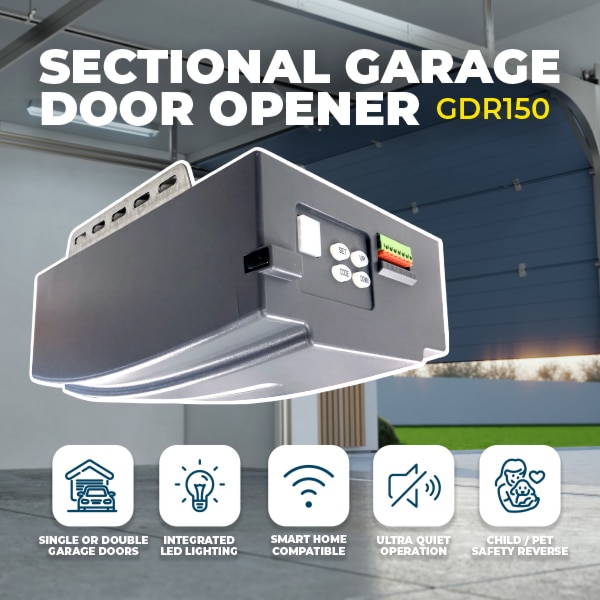

Remote controlled garage door opener designed for residential single and double sectional and tilt panel doors up to 15m².
Designed for Easy Installation: Supplied as a complete kit with pre-configured components, making it suitable for DIY installation or professional fitting.
Compatible with Sectional & Tilt Panel Doors: Suitable for single and double residential garage doors up to 15m² and 150kg.

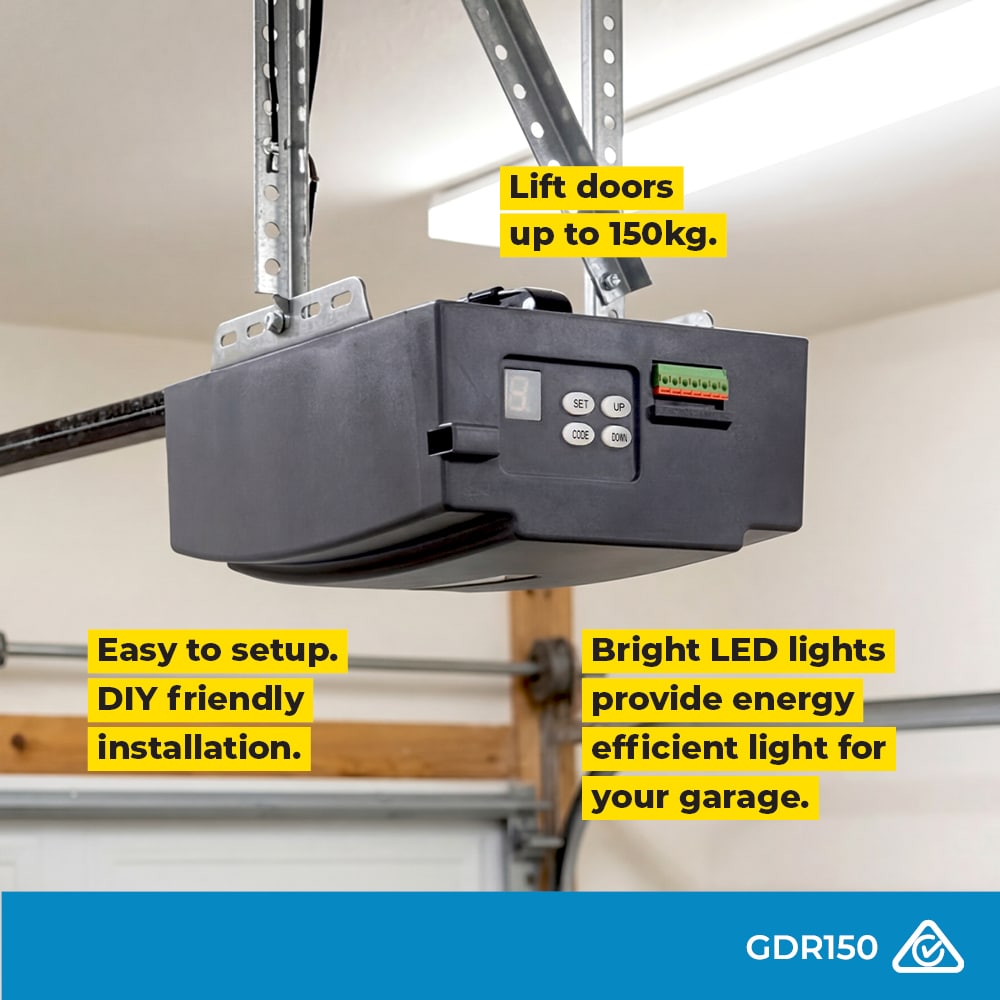

24V DC Motor with 1000N Pulling Force: Delivers smooth and reliable lifting performance for sectional and tilt garage doors up to 150kg.
Quiet Belt Drive System: Belt-driven mechanism provides quiet operation, ideal for attached garages and residential homes.

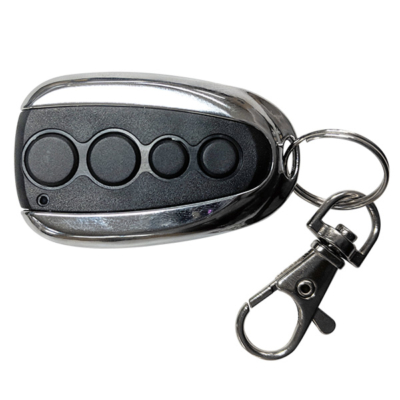

Secure Rolling Code Remote System: 433.92MHz rolling code technology to enhance security. Includes two remotes (GTR179), with storage for up to 50 remotes.

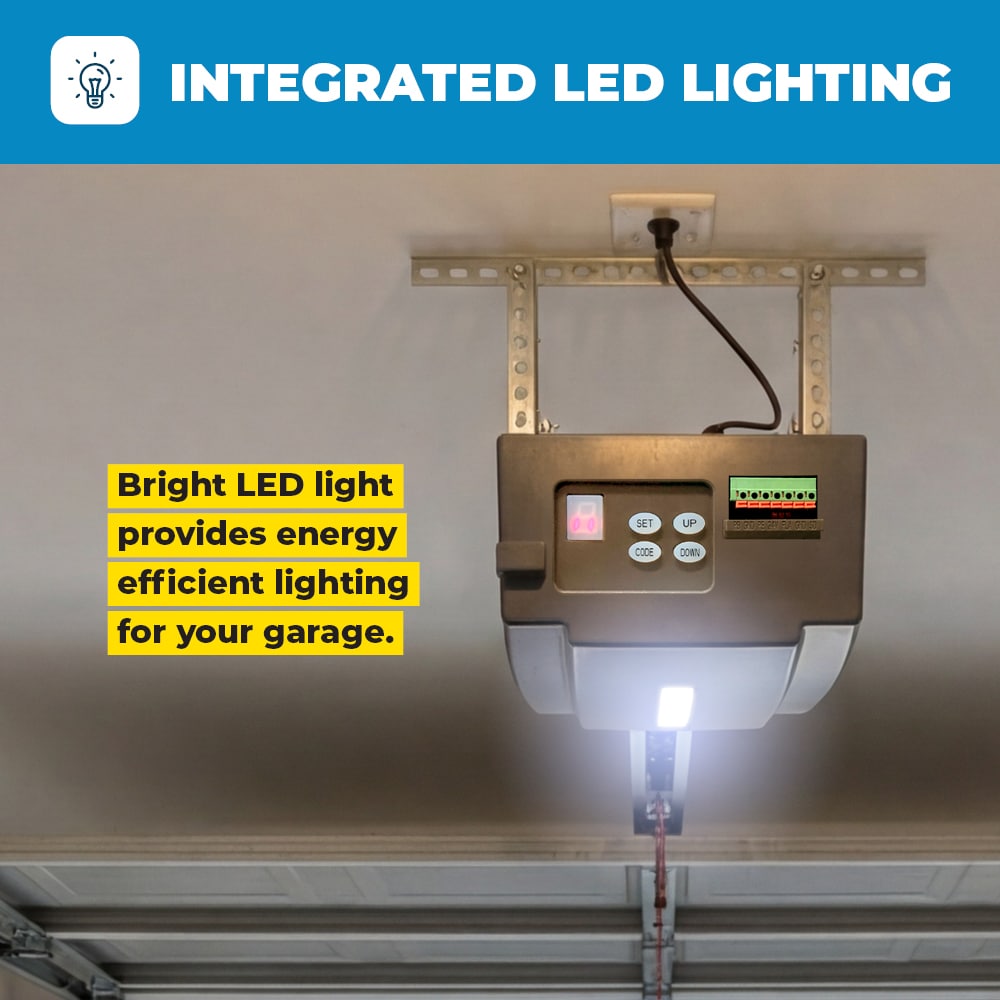

Integrated LED Lighting: Built-in 24V LED light improves visibility inside the garage during operation.

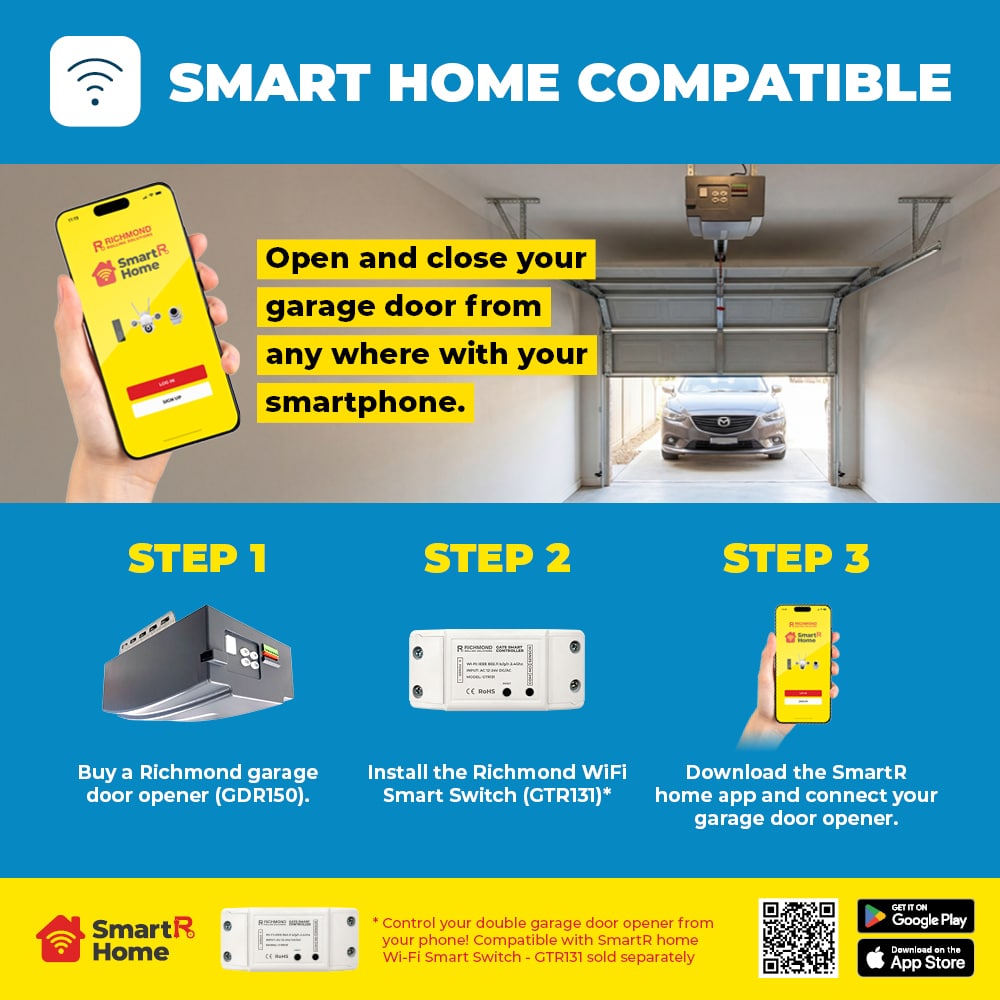

Smart Home Compatible: Compatible with Richmond’s SmartR Home WiFi Smart Switch (GTR131), allowing remote control via smartphone.
Built-In Safety Features: Includes soft start & stop, caution light option, photocell option, and optional auto close when photocells are fitted (photocells sold separately).
Description
The GDR150 Garage Door Opener is a reliable and easy-to-install solution for residential garage doors.
Designed for both DIY users and professional installers, the unit is supplied as a complete kit with rail sections, mounting brackets, remotes and hardware included. The assembly process is straightforward, and the electronic limit setting makes it easy to set the door’s opening and closing positions during initial setup.
Suitable for single and double sectional and tilt panel doors up to 15m² and 150kg, the 24V DC motor and belt drive system provide smooth and quiet operation. This makes it well suited to homes where the garage is attached to living areas.
Integrated LED lighting improves visibility inside the garage while the door is operating. Built-in safety features include soft start & stop, caution light compatibility, photocell option, and optional auto close when photocells are installed (photocells sold separately).
The opener includes two GTR179 remotes and supports pairing up to 50 remotes. Rolling code technology enhances security by changing the access code each time the remote is used. For added convenience, the unit is compatible with Richmond’s SmartR Home WiFi Smart Switch (GTR131), allowing control from your phone via the SmartR Home app.
Please note: Photocells or safety beams must be installed when operating the door remotely without direct line of sight.
Whether you’re upgrading an existing garage door or installing a new system, the GDR150 provides dependable day-to-day operation with a simple installation and setup process.
Product FAQs

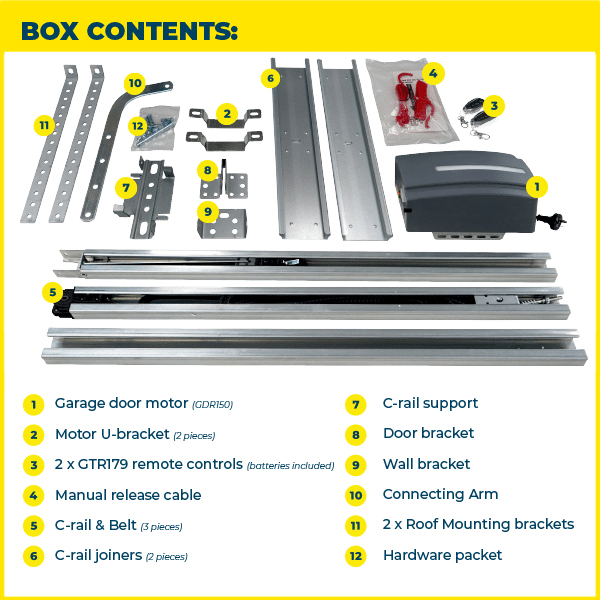

Yes. The GDR150 is designed with DIY installation in mind and comes as a complete kit that includes the motor unit, segmented rail and belt, wall and door brackets, connecting arm, mounting brackets, two GTR179 remotes (with batteries), manual release cable, and all required hardware.

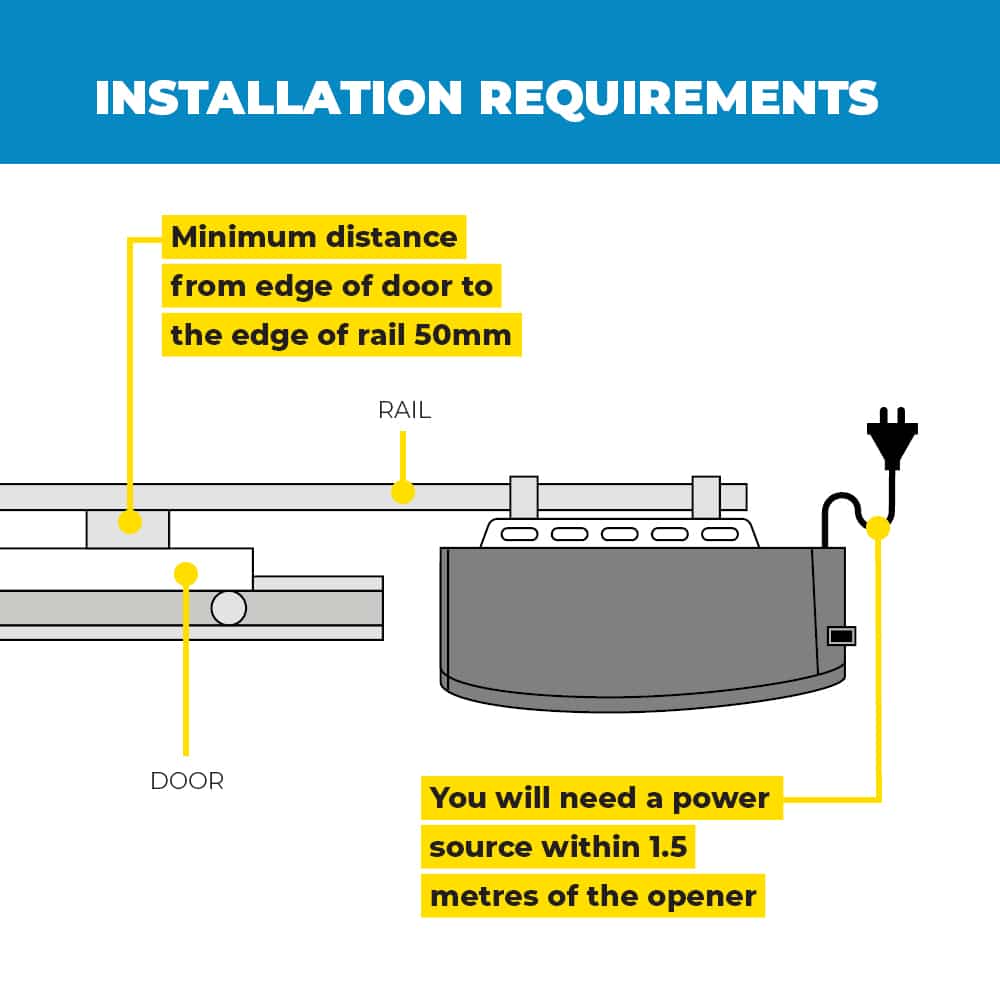

Before installing, ensure your garage meets the minimum space requirements: at least 350mm of headroom above the door opening, 220mm of clearance on each side, and a minimum ceiling depth of 3,400mm. You’ll also need access to a standard 240V power outlet.

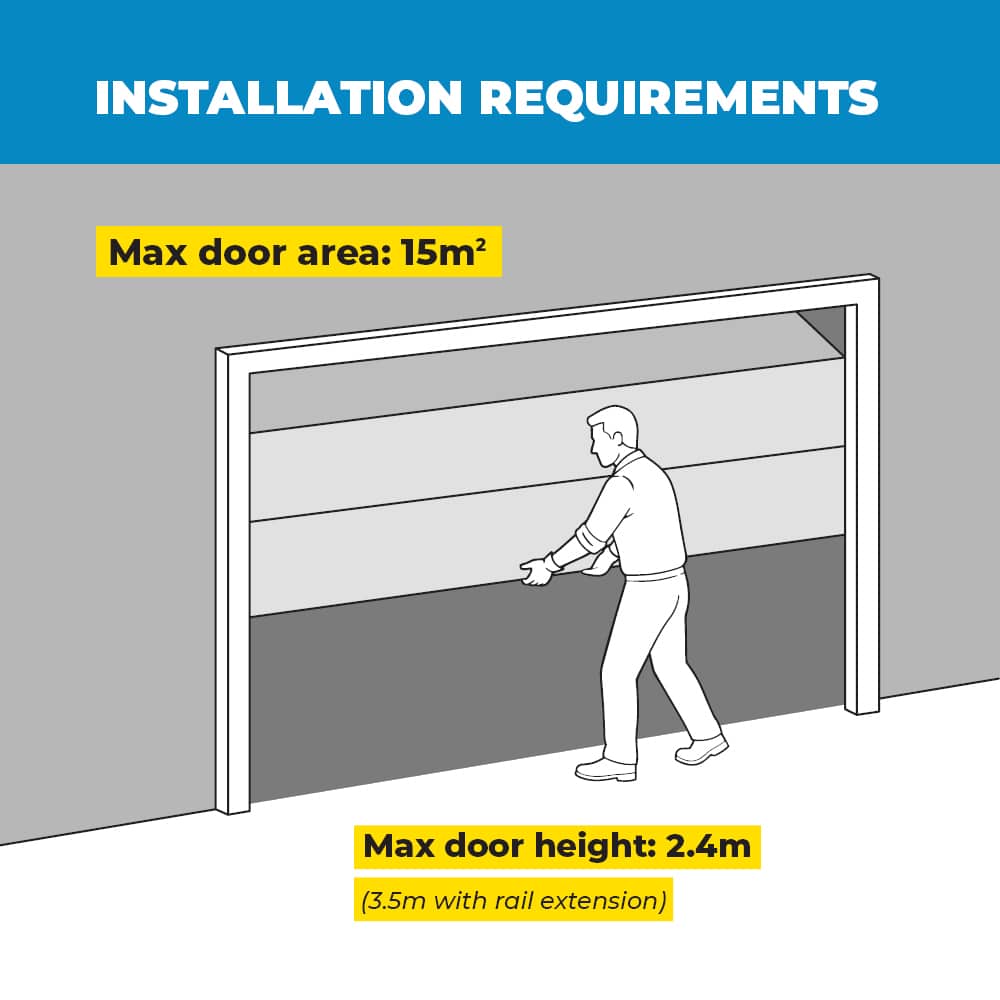

The GDR150 is specifically designed for residential spring-balanced sectional panel doors and tilt panel garage doors. It supports doors up to 15m² in area and 150kg in weight, with a maximum width of 5,600mm.
The included standard rail suits doors up to 2,400mm in height. If your door is taller, an optional extension rail is available for doors up to 3,500mm.
Note: This opener is not suitable for wicket doors (a smaller door within the main door) or installations in damp or weather-exposed environments.
Yes. The GDR150 is suitable for both single and double garage doors, including sectional and tilt panel designs.
As long as your door stays within the specified limits: Maximum width of 5,600mm, height of 2,400mm (or 3,500mm with extension rail), total area of 15m², and weight of 150kg, the opener will operate effectively.
Most standard double garage doors fall comfortably within these specifications.
Pairing a remote to the GDR150 is quick and typically takes under a minute.
Steps:
Press the CODE button on the motor (a dot will appear on the display)
Press your chosen button on the remote
Press the same button again until the display confirms pairing
The GDR150 can store up to 50 remote controls. Two GTR179 remotes are included in the kit.
To clear all remotes, press and hold the CODE button until “C” appears on the display.
Important: If operating the door remotely (without direct line-of-sight), safety photocells must be installed. This is required for compliance with AS/NZS 60335.2.95:2024, and features like auto-close will not function without them.
The GDR150 includes a comprehensive set of safety features designed to meet modern standards:
Soft start and soft stop to reduce wear and noise
Automatic reversal if an obstruction is detected
Adjustable reversal sensitivity and height
Photocell (safety beam) compatibility for enhanced protection
Manual release cord for emergencies or power outages
Optional flashing caution light connection
Built-in maintenance reminder system
The opener complies with AS/NZS 60335.2.95:2024 safety standards, ensuring reliable and safe operation.
