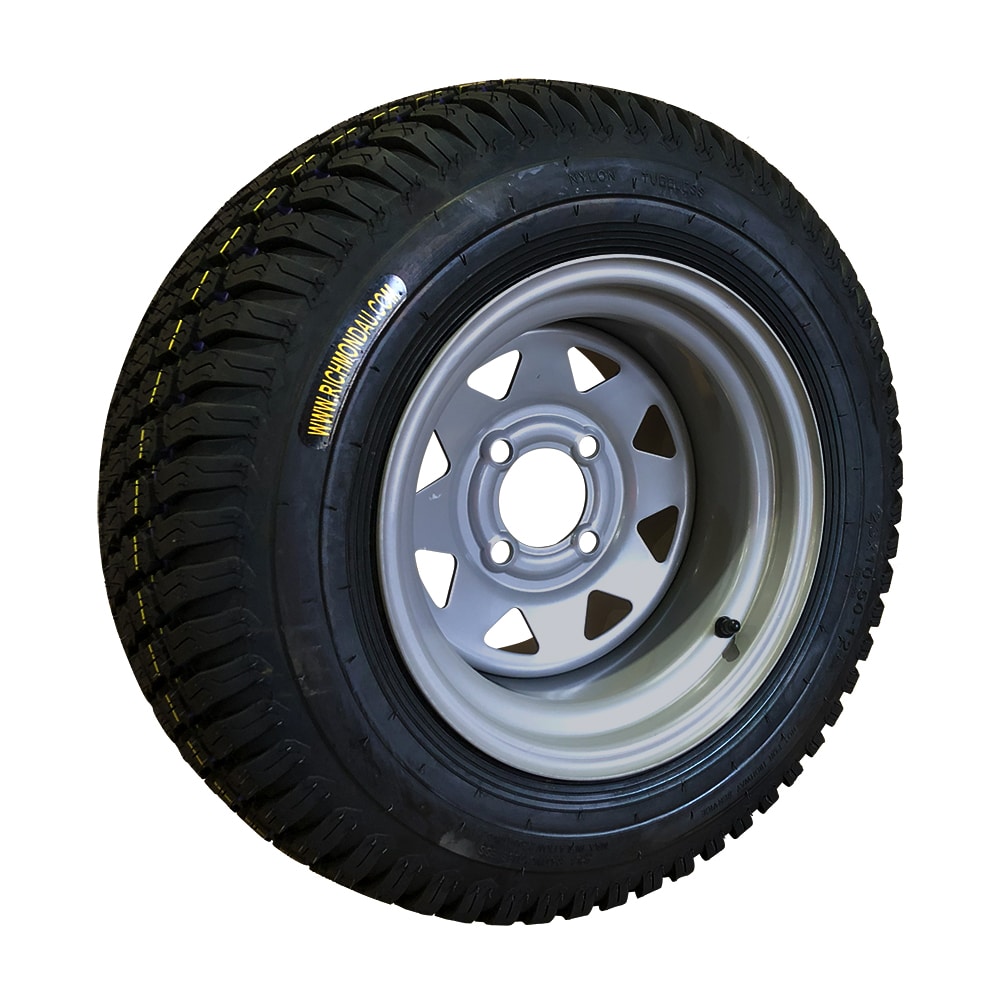

23 X 10.50-12 Pneumatic Mower Wheel With Mini 4 Stud Pattern Rim And Premium Turf Tyre (PN23-105-12TU)

23 X 10.50-12 Pneumatic Mower Wheel With Mini 4 Stud Pattern Rim And Premium Turf Tyre (PN23-105-12TU) - Image 2

23 X 10.50-12 Pneumatic Mower Wheel With Mini 4 Stud Pattern Rim And Premium Turf Tyre (PN23-105-12TU) - Image 3

23 X 10.50-12 Pneumatic Mower Wheel With Mini 4 Stud Pattern Rim And Premium Turf Tyre (PN23-105-12TU) - Image 4

23 X 10.50-12 Pneumatic Mower Wheel With Mini 4 Stud Pattern Rim And Premium Turf Tyre (PN23-105-12TU)

$351.98 ex. GST

$404.78 inc. GST

Available Online

Premium Turf Tyre Wheel Assembly with Mini Pattern Rim

23×10.50-12 Tyre Size
Mini pattern rim (4 on 101.6mm PCD)
Zero rim offset
Full wheel assembly including premium turf tread tyre and rim
Wide profile for excellent traction and minimal turf disturbance
Suitable for use as a rear drive wheel on ride-on mowers

Commonly found on: agricultural equipment and greenskeeping equipment.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

23″ x 10.50″-12 Pneumatic Mower Wheel with Mini 4-Stud Rim and Premium Turf Tyre (PN23-105-12TU)

This heavy-duty pneumatic mower wheel assembly is built to deliver smooth performance, excellent traction, and low turf impact. Featuring a wide 23×10.50-12 tyre paired with a Mini 4-stud rim (101.6mm PCD), this assembly is designed for use on turf-sensitive equipment like ride-on mowers and greenkeeping machinery.

The full assembly includes a premium turf tread tyre mounted to a Mini pattern steel rim with a zero rim offset—optimised for rear drive wheels where balanced handling and consistent ground contact are essential. The wide profile offers excellent stability while distributing weight evenly to reduce turf disturbance during tight turns or slope work.

Whether maintaining sporting grounds, estates, or agricultural areas, this wheel assembly is engineered for performance, durability, and precision.

Mini 4-Stud Mounting Pattern

A Mini 4-stud mounting pattern offers a compact stud layout that suits lightweight hubs and wheels. The Mini mounting pattern features 4 bolt holes on a 101.6mm (4”) circle. It contains 4 studs evenly spaced around the rim of the wheel and provides easy installation and alignment.

This mounting pattern is commonly found on small trailers, compact mowers, golf buggies, and turf equipment.

Zero Rim Offset

A zero offset wheel means that the mounting point of the hub is in the centreline of the rim. This means the wheel is mounted equally spaced and balanced between each side of the rim for maintaining a balanced load distribution across the hub.

This type of offset is common in rear golf buggy wheels, trailers, and turf equipment.

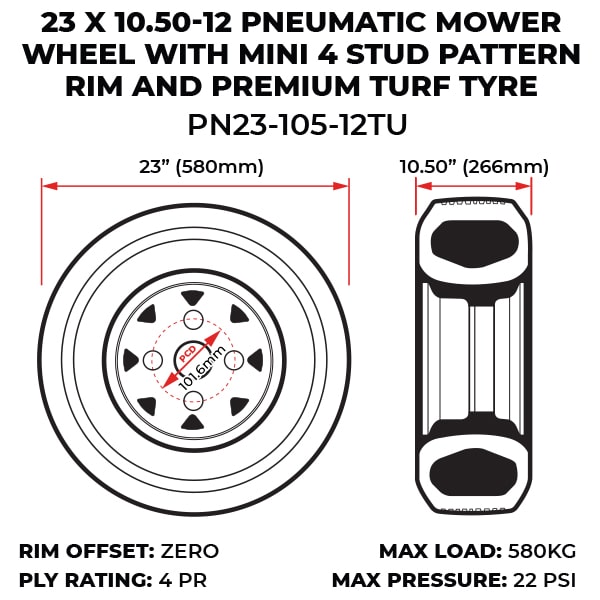

Product Code	PN23-105-12TU
Size	23 x 10.50-12
Tyre to suit	TY23-105-12TU
Stud Pattern	4 ON 101.6 mm
PCD. Rim Offset	Zero
Max pressure	22 psi
PLY Rating	4 PR
Tread Pattern	Premium Turf
Maximum Load	580 kg
