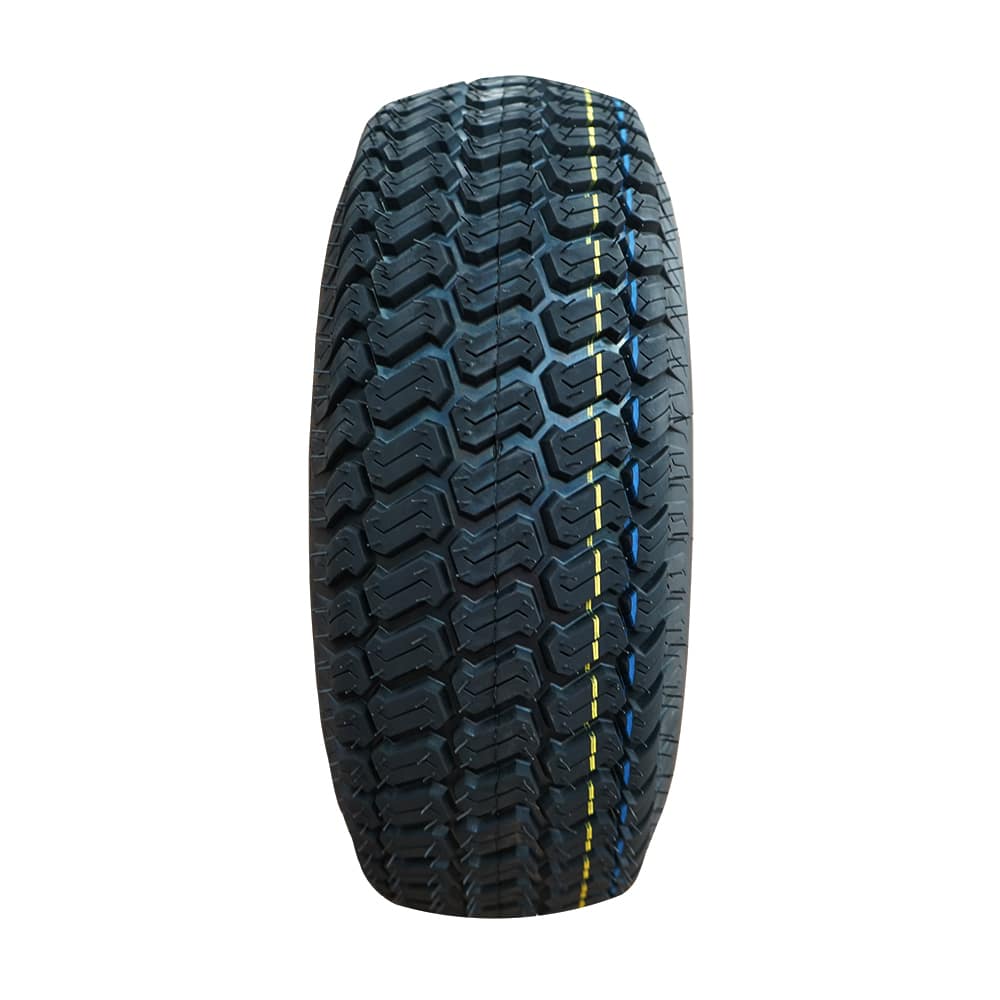

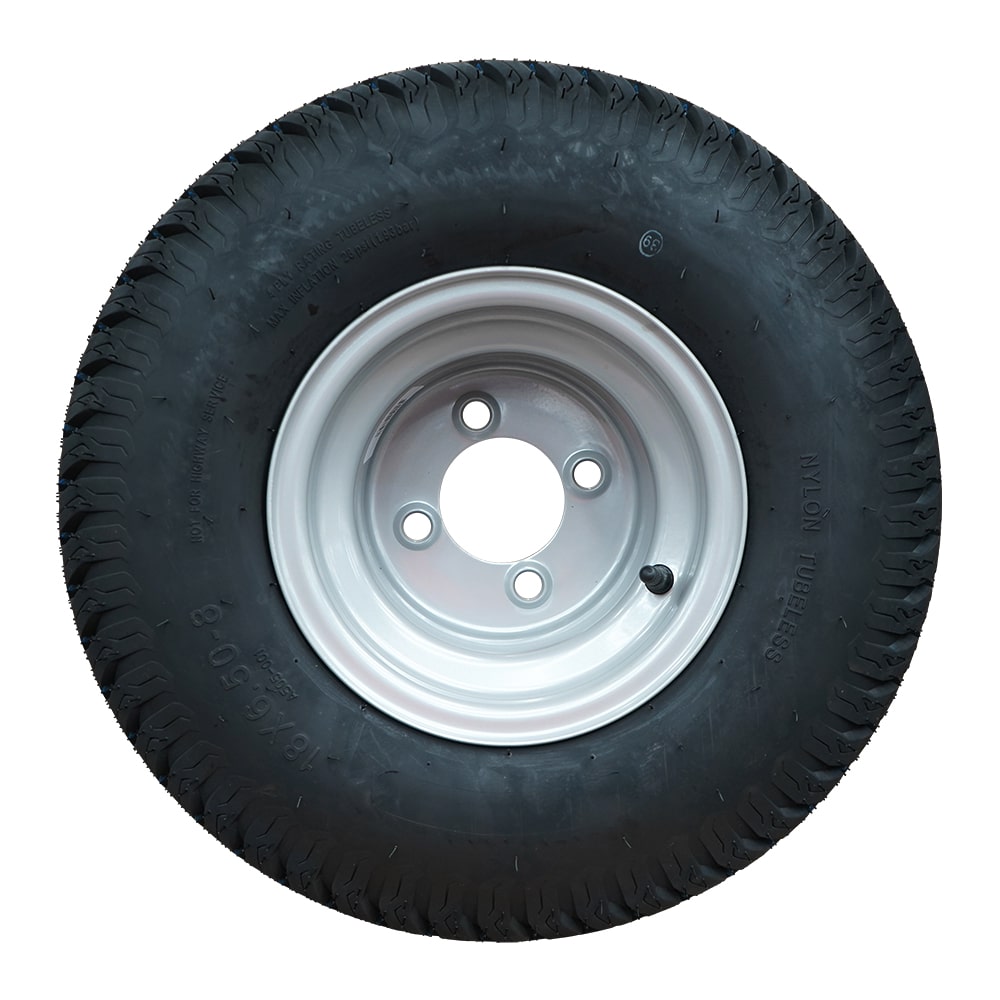

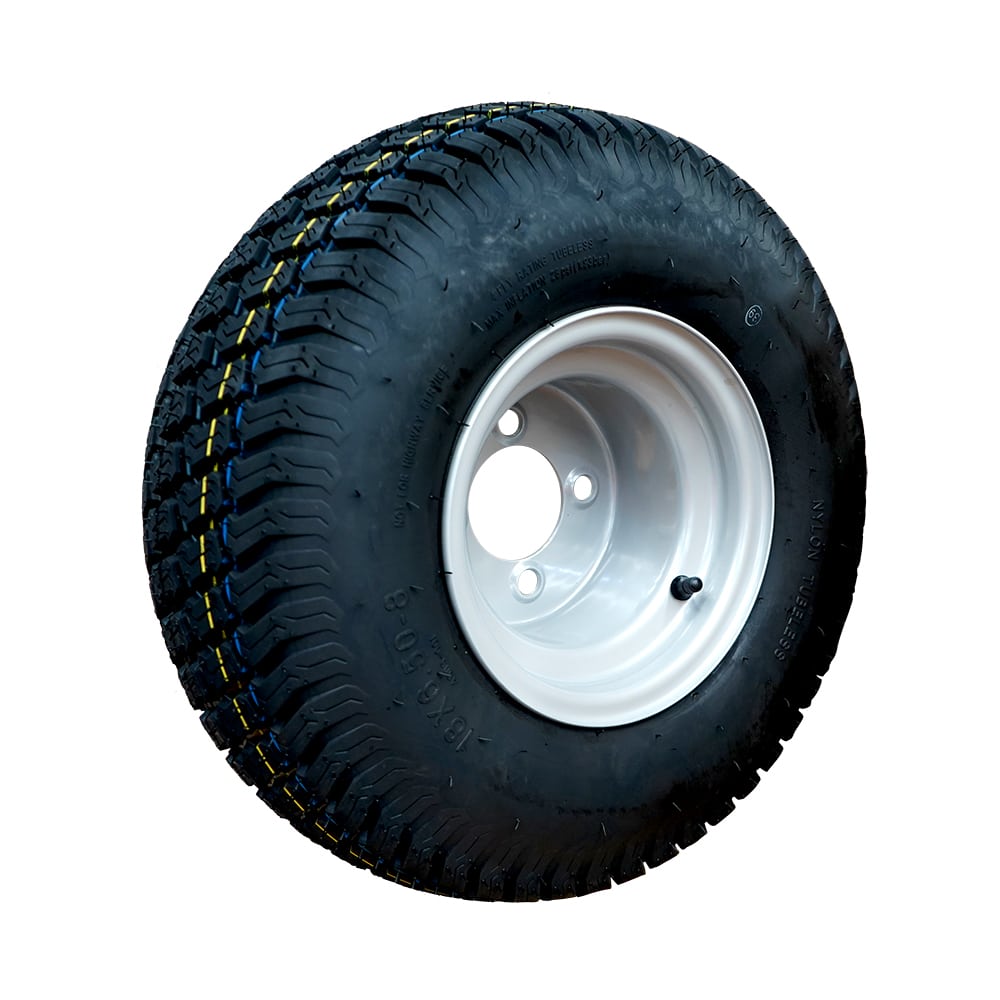

18 X 6.50-8 Pneumatic Wheel With Mini 4 Stud Pattern Rim And Premium Turf Tyre (PN18-650-8MN)

18 X 6.50-8 Pneumatic Wheel With Mini 4 Stud Pattern Rim And Premium Turf Tyre (PN18-650-8MN) - Image 2

18 X 6.50-8 Pneumatic Wheel With Mini 4 Stud Pattern Rim And Premium Turf Tyre (PN18-650-8MN) - Image 3

18 X 6.50-8 Pneumatic Wheel With Mini 4 Stud Pattern Rim And Premium Turf Tyre (PN18-650-8MN) - Image 4

18 X 6.50-8 Pneumatic Wheel With Mini 4 Stud Pattern Rim And Premium Turf Tyre (PN18-650-8MN)

$159.72 ex. GST

$183.68 inc. GST

Available Online

Premium Turf Tyre Wheel Assembly with Mini Pattern Rim

18×6.50-8 Tyre Size
Mini pattern rim (4 on 101.6mm PCD)
3/4″ negative rim offset
Full wheel assembly including premium turf tread tyre and rim
Designed to minimise ground compaction on turf and soft surfaces
Suitable for use as a rear drive wheel on ride-on mowers

Commonly found on: agricultural equipment, greens keeping equipment, and bowling green rollers.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

18″ x 6.50″-8 Pneumatic Wheel with Mini 4-Stud Rim and Premium Turf Tyre (PN18-650-8MN)

This compact turf wheel assembly is built for rear-drive applications on ride-on mowers and groundcare equipment, offering a balance between traction, flotation, and ground protection. The 18×6.50-8 premium turf tyre is mounted on a Mini 4-stud pattern rim (101.6mm PCD) with a 3/4″ negative offset, delivering optimal fitment and performance across a range of equipment.

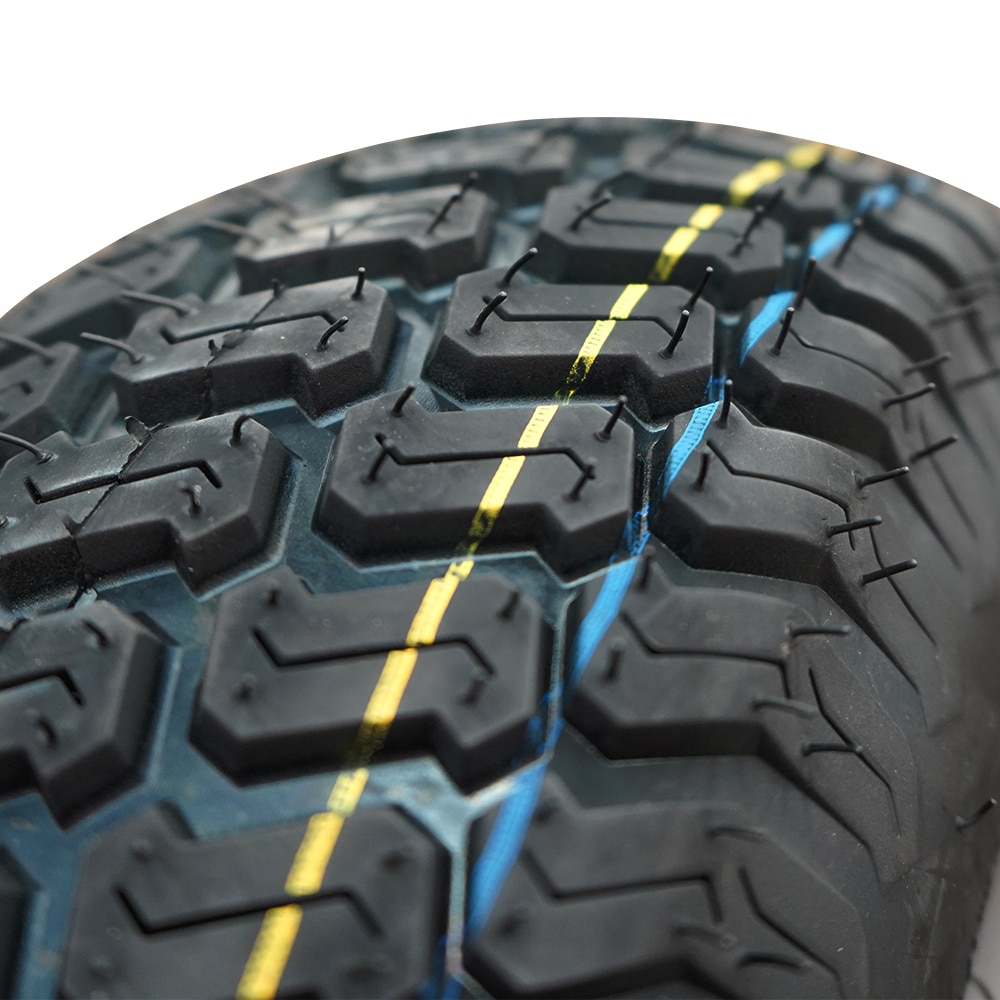

The tread pattern is designed to minimise surface compression, making it well suited to bowling greens, parks, sports fields, and soft or landscaped ground. With a 4-ply construction, 28 psi maximum inflation, and a 320 kg load rating, this assembly ensures dependable rolling under varied conditions.

This full assembly includes the rim and tyre, and is ready for bolt-on installation across a wide range of greenkeeping and agricultural equipment.

Mini 4-Stud Mounting Pattern

A Mini 4-stud mounting pattern offers a compact stud layout that suits lightweight hubs and wheels. The Mini mounting pattern features 4 bolt holes on a 101.6mm (4”) circle. It contains 4 studs evenly spaced around the rim of the wheel and provides easy installation and alignment.

This mounting pattern is commonly found on small trailers, compact mowers, golf buggies, and turf equipment.

Negative Offset Rim

A Negative offset means that the mounting position of the wheel is located closer to the inner (chassis-side) face of the wheel. This moves the centre of the wheel and tyre further outward when mounted. Improving clearance between the wheel hub and other components. Commonly seen on a wide range of rear ride-on mower wheels.

A positive offset on a wheel means the mounting point is located closer to the outside (exterior side) of the wheel.

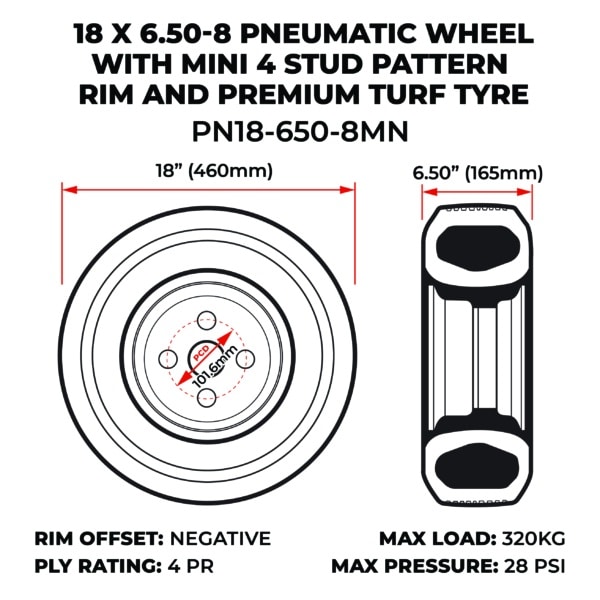

Product Code	PN18-650-8MN
Rim	RI08X375MN-75
Size	18 X 6.50-8
Tyre to suit	TY18-650-8TUR
Stud Pattern	4 ON 101.6 mm
PCD. Rim Offset	3/4" negative
Max pressure	28 psi
PLY Rating	4 PR
Tread Pattern	Premium Turf
Maximum Load	320 kg
