16 X 6.50-8 Pneumatic Wheel With Mini 4 Stud Pattern Rim And Premium Turf Tyre (PN16-650-8MN)

$138.65 ex. GST

$159.45 inc. GST

Available Online

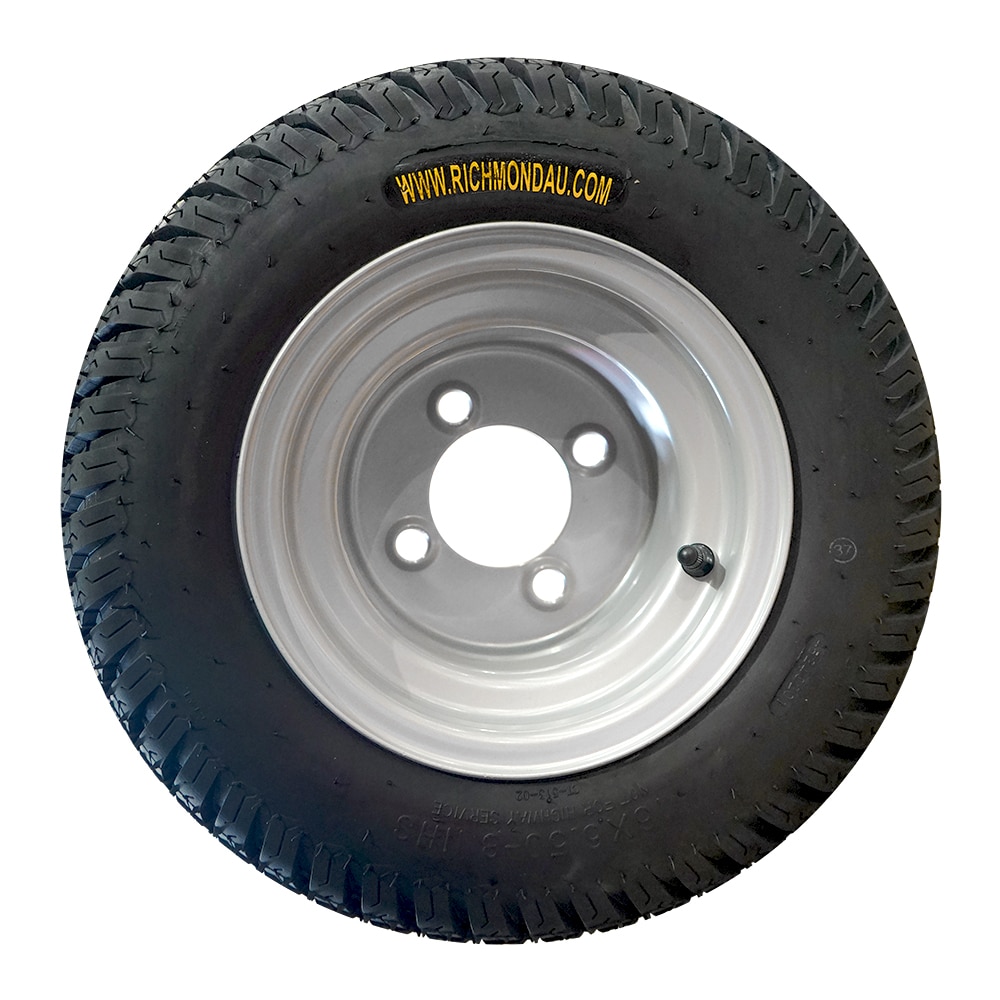

Premium Turf Tyre Wheel Assembly with Mini Pattern Rim

16×6.50-8 Tyre Size
Mini pattern rim (4 on 101.6mm PCD)
3/4″ negative rim offset
Full wheel assembly including premium turf tread tyre and rim
Designed for smooth rolling and minimal turf impact
Suitable for use as a rear drive wheel on ride-on mowers

Commonly found on: agricultural equipment, greens keeping equipment, and bowling green rollers.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

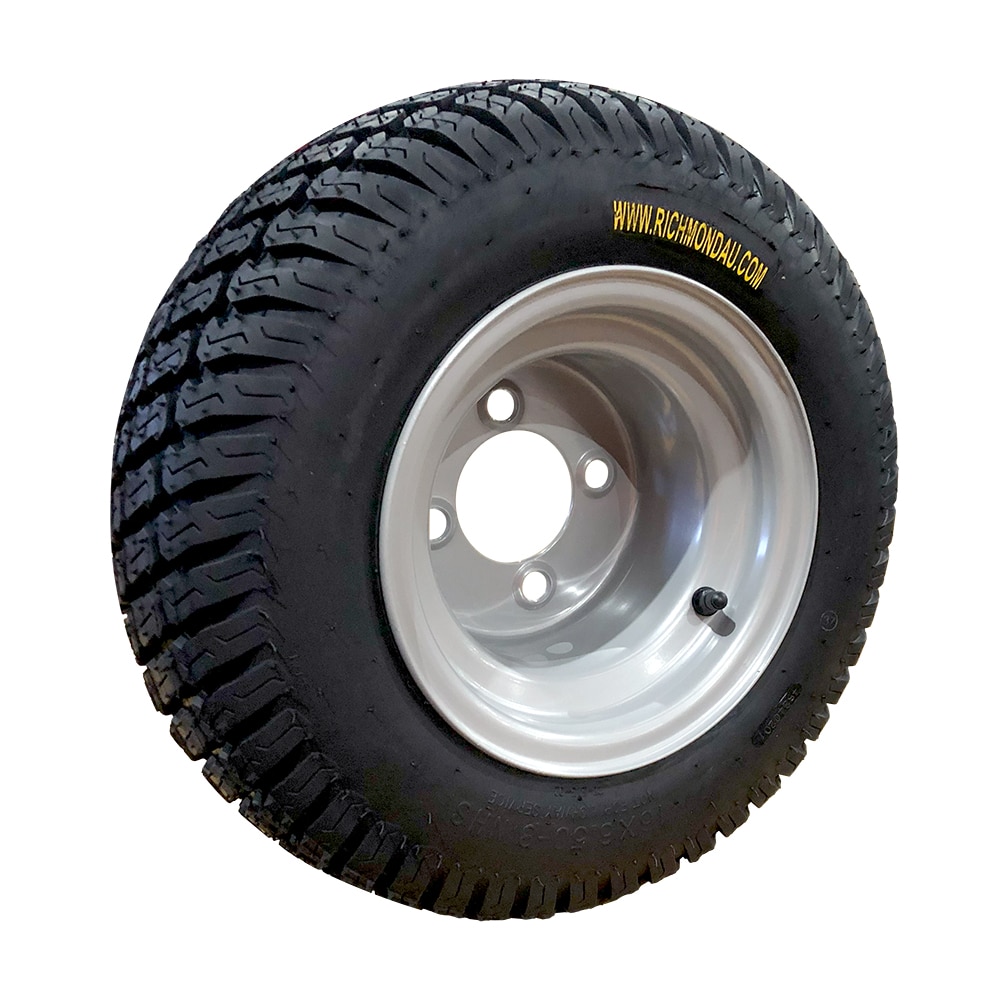

16″ x 6.50″-8 Pneumatic Wheel with Mini 4-Stud Rim and Premium Turf Tyre (PN16-650-8MN)

This compact turf wheel assembly combines durability with a smooth, low-impact ride, making it ideal for groundcare and mowing equipment. The 16×6.50-8 premium turf tyre is mounted on a Mini 4-stud steel rim (101.6mm PCD) with a 3/4″ negative offset, ensuring correct alignment and clearance across a wide range of rear axle setups.

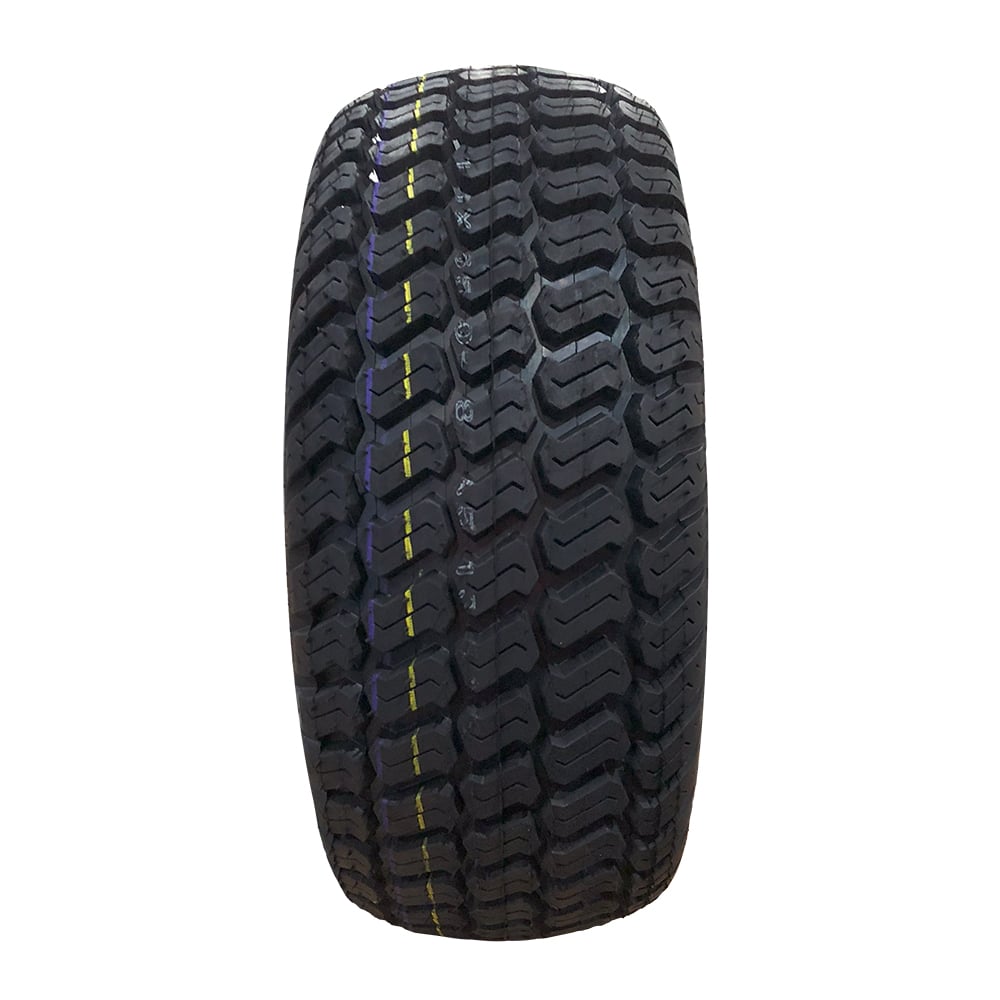

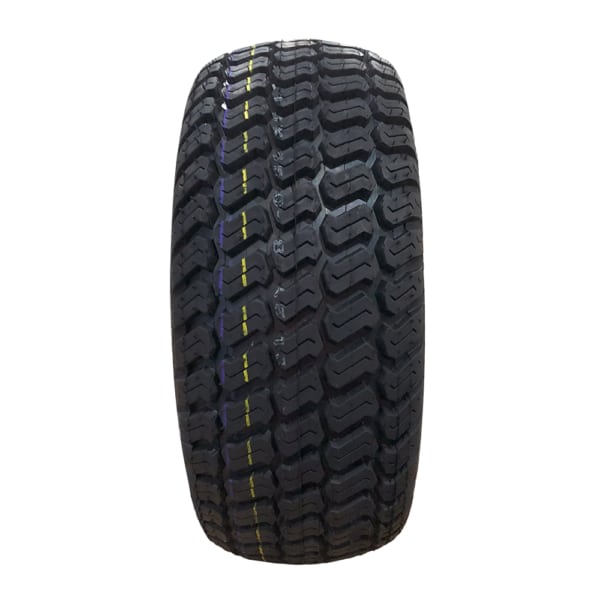

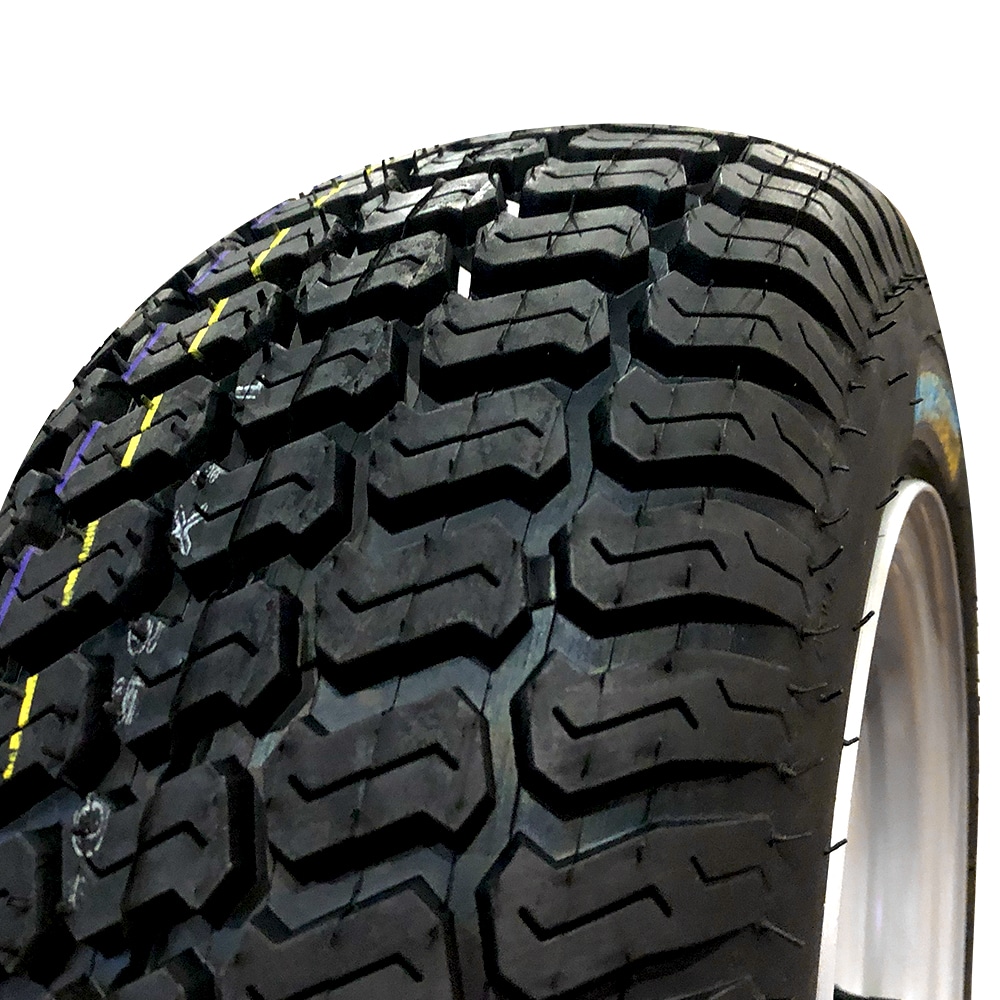

The tread is designed for minimal turf disturbance while providing steady traction on soft, landscaped, or grassed surfaces. Rated to 280 kg and built with a 4-ply construction, this assembly is a practical solution for reliable performance under regular load and usage conditions.

This complete wheel assembly includes the tyre and Mini stud pattern rim, offering a ready-to-fit solution for many commercial and agricultural machines.

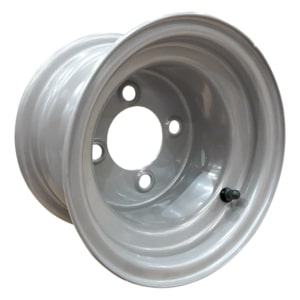

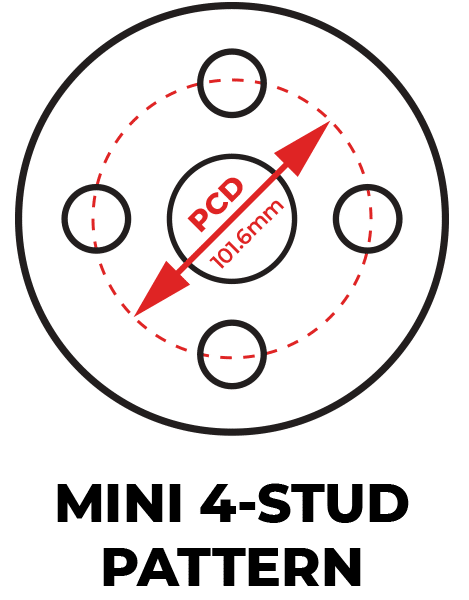

Mini 4-Stud Mounting Pattern

A Mini 4-stud mounting pattern offers a compact stud layout that suits lightweight hubs and wheels. The Mini mounting pattern features 4 bolt holes on a 101.6mm (4”) circle. It contains 4 studs evenly spaced around the rim of the wheel and provides easy installation and alignment.

This mounting pattern is commonly found on small trailers, compact mowers, golf buggies, and turf equipment.

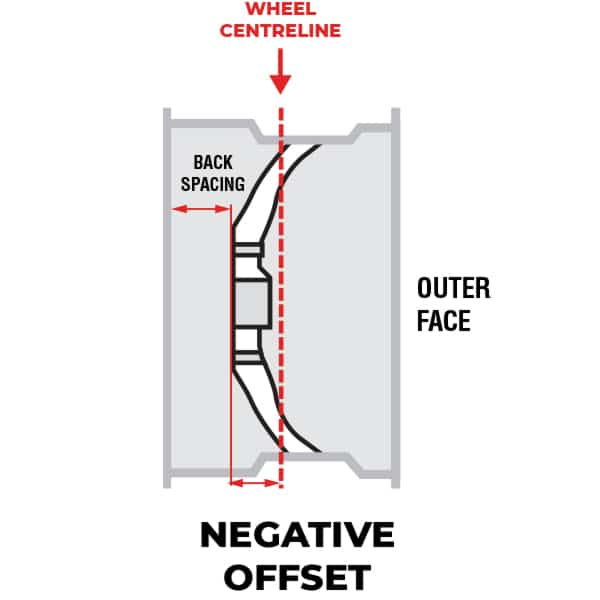

Negative Offset Rim

A Negative offset means that the mounting position of the wheel is located closer to the inner (chassis-side) face of the wheel. This moves the centre of the wheel and tyre further outward when mounted. Improving clearance between the wheel hub and other components. Commonly seen on a wide range of rear ride-on mower wheels.

A positive offset on a wheel means the mounting point is located closer to the outside (exterior side) of the wheel.

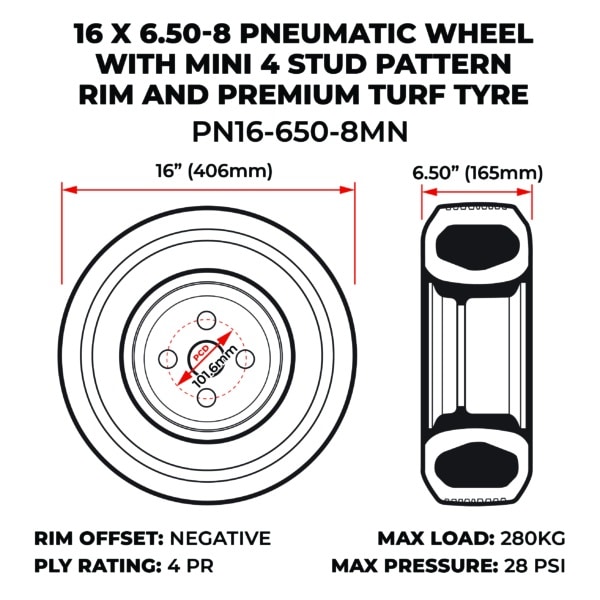

Product Code	PN16-650-8MN
Rim	RI08X375MN-75
Size	16 X 6.50-8
Tyre to suit	TY16-650-8TUR
Stud Pattern	Mini 4 ON 101.6 mm
PCD. Rim Offset	3/4" negative
Max pressure	28 psi
PLY Rating	4 PR
Tread Pattern	Premium Turf
Maximum Load	280 kg
