Frequently Asked Questions
What are load skates and how are they used in industrial environments?
Load skates are specialised material handling devices designed to move heavy machinery and equipment across flat, smooth surfaces. They use a low-profile steel frame with multiple rollers to distribute the load weight, allowing large machines to be repositioned during installation, maintenance, relocation and production line changes.
How do you calculate the correct load skate capacity for a job?
Start by confirming the total weight of the machinery or equipment being moved. The combined capacity of the load skates should exceed the total load weight, with allowance for uneven weight distribution, floor conditions and movement during transport. Always check the rated capacity of each skate and select a suitable safety margin for the application.
What is the difference between nylon and polyurethane rollers on load skates?
Nylon rollers provide low rolling resistance and are well suited to smooth concrete or epoxy floors. Polyurethane rollers offer improved floor protection and reduced marking, making them suitable for applications where the floor surface needs to be protected during machinery movement.
Does using polyurethane rollers reduce load capacity?
Polyurethane rollers can sometimes have a lower load capacity than nylon rollers of the same size because polyurethane is softer and compresses more under load. Load skate designs can use different roller sizes, widths, quantities or hardness levels to balance floor protection with the required load rating.
Why is a three-point load skate configuration often recommended?
A three-point configuration is commonly used because three support points create a stable plane. One steerable skate is typically positioned at the front, with two fixed skates supporting the rear. This helps maintain contact with the floor and improves stability during controlled machinery movement.
What floor surfaces are suitable for operating load skates?
Load skates perform best on hard, smooth and level surfaces such as concrete warehouse floors, epoxy-coated factory floors and reinforced industrial slabs. Uneven ground, damaged concrete, gravel and soft surfaces are not suitable as they can affect stability and rolling performance.
Do load skates require maintenance or inspection before use?
Yes. Rollers should be checked for cracks, flat spots, embedded debris or damage before use. Bearings should rotate freely, and the frame should be inspected for damage or distortion. Load skates should be stored in a clean, dry area to help maintain reliable performance.

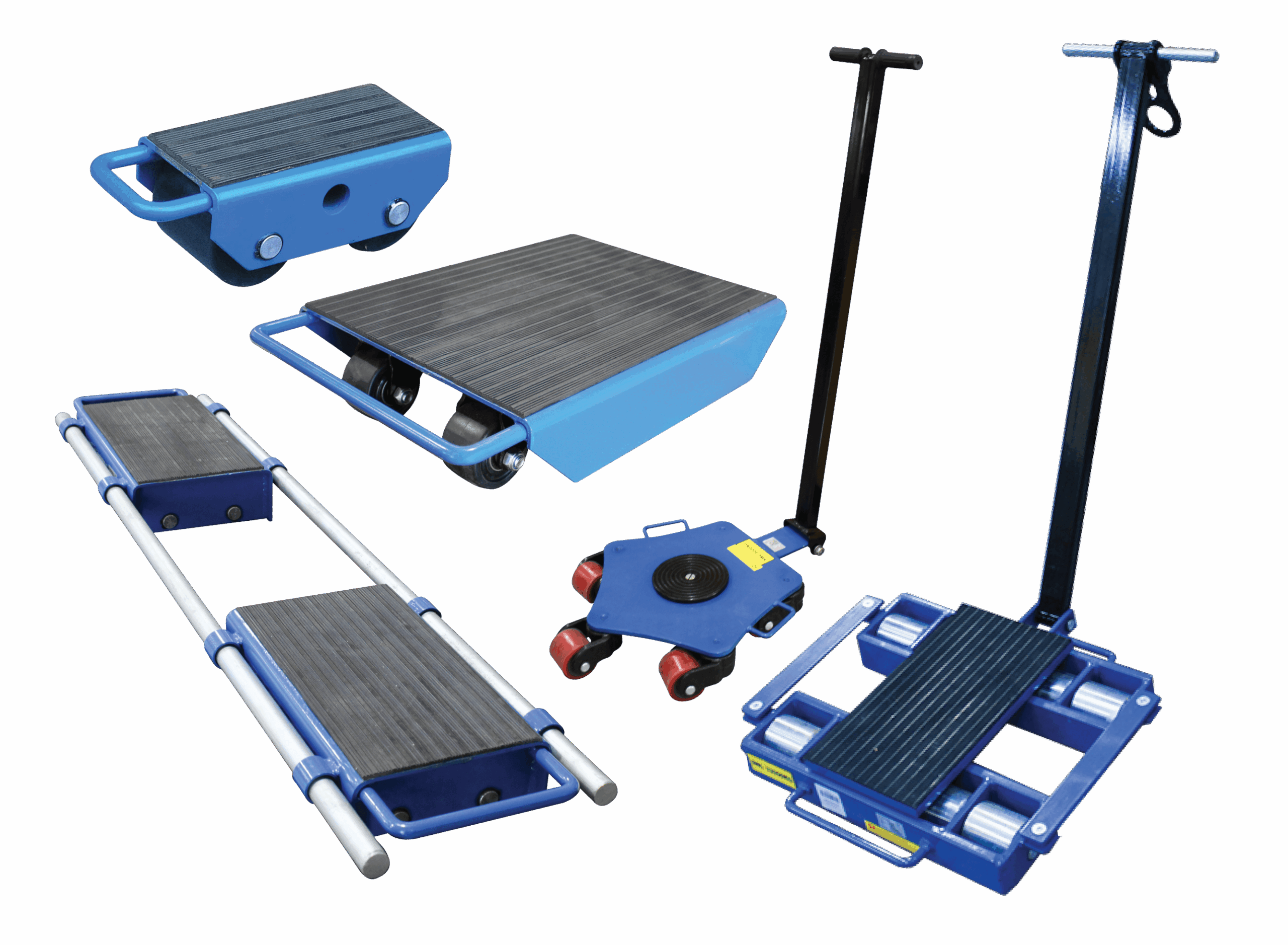

Industrial Load Skates for Heavy Machinery Moving
Richmond supplies Industrial Load Skates designed for safely moving heavy machinery, plant equipment and industrial components across warehouses, workshops and manufacturing facilities throughout New Zealand. These Machinery Moving Skates and Heavy Machinery Skates help distribute load weight across multiple rollers, allowing large equipment to be repositioned with greater control during relocation, installation and maintenance work.
Load skates are widely used by maintenance teams, machinery installers, engineering contractors and industrial operators who need a practical way to move heavy equipment across smooth floors. In warehouses, logistics operations, industrial sites and workshops, they support safer equipment movement while reducing manual handling risks.
Richmond load skates are suitable for short-distance transport tasks where controlled movement, stable support and reliable load distribution are essential.
Machinery Moving Skates for Industrial Equipment
Richmond load skates are built for controlled movement of heavy machinery across smooth industrial floors. By spreading the load across multiple rollers, these systems allow operators to reposition equipment safely while improving control during transport and machinery positioning tasks.
They are commonly used during factory relocations, machinery installation projects, equipment replacement and maintenance shutdowns. In warehouses, workshops, manufacturing plants and logistics centres, load skates help improve workplace efficiency when moving presses, generators, fabrication machinery and other heavy plant equipment.
For best performance, load skates should be used on hard, level surfaces with a clear travel path. Where floor joints, uneven sections or surface changes are present, additional preparation may be required to support safe and controlled movement.
Product Types by Application
Adjustable Load Skates
Adjustable load skates allow operators to move heavy machinery using multiple skate units positioned under the load. Equipment is typically lifted using a jack or roller crow bar before the skates are placed underneath, creating a flexible system for different load shapes and sizes.
These skates are commonly used during machinery installation, plant relocation and maintenance operations in manufacturing plants, engineering workshops and industrial facilities. Their adjustable setup supports varying weight distribution and helps operators manage equipment movement more efficiently.
Load Skate Kits
Load skate kits provide a complete machinery moving solution for transporting heavy equipment across short distances. These kits typically include multiple rear skates together with a steerable front unit, allowing directional control when moving large industrial loads.
Supplied as a practical system for controlled machinery movement, load skate kits are widely used by machinery installers, maintenance teams and engineering contractors who need a reliable setup for relocation work.
Heavy Duty Machinery Skates
Heavy duty machinery skates are designed for higher load capacities and demanding industrial environments. They feature robust steel frames and heavy duty rollers to support the safe transport of large machinery, plant equipment and industrial components.
These skates are commonly used in manufacturing plants, workshops and heavy industry where large equipment must be repositioned during installation, servicing or production line changes.
Specialty Product Options
Rubber Non-Slip Load Platforms
Rubber non-slip load platforms help stabilise machinery during transport by improving grip between the skate and the load. This helps reduce the risk of equipment shifting while also protecting the base of the machine or component being moved.
These platforms are useful when relocating precision equipment, uneven loads or machinery with smooth base surfaces. In workshops, factories and engineering environments, they provide added control during careful positioning tasks.

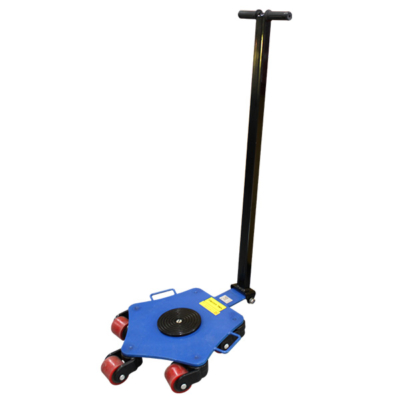

Steerable Front Skate Systems
Steerable front skate systems provide directional control when transporting heavy equipment. The steering mechanism allows operators to guide machinery around obstacles, through access points and into final position with greater accuracy.
These systems are commonly used during machinery installation and factory relocation projects where precise positioning is required. They are well suited to warehouses, manufacturing plants and industrial sites with tighter layouts or complex transport paths.
Heavy Duty Roller Assemblies
Heavy duty roller assemblies are designed to support high loads while maintaining smooth movement across suitable industrial floor surfaces. The rollers distribute weight evenly to reduce floor pressure and improve transport stability during machinery movement.
Built for long service life in industrial environments, these assemblies are suited to repeated equipment relocation tasks in workshops, logistics operations and manufacturing plants.
Applications by Industry
- Warehousing & Logistics: Machinery moving skates for repositioning plant equipment, infrastructure and heavy operational assets.
- Manufacturing & Engineering: Load skates for relocating presses, CNC machines, fabrication equipment and production machinery.
- Maintenance & Facility Management: Heavy machinery skates used during servicing, upgrades, shutdowns and equipment replacement.
- Construction & Industrial Projects: Machinery moving systems for positioning generators, compressors and other plant equipment.
- Machinery Installation Contractors: Load skate kits for transporting and positioning heavy industrial machines during installation projects.
Industrial Machinery Moving Solutions Across New Zealand
Richmond supplies load skates and heavy machinery moving equipment to businesses throughout New Zealand. Our product range supports the safe relocation of heavy equipment in warehouses, factories, workshops and construction environments.
Whether moving production machinery, generators, fabrication equipment or industrial plant, Richmond can assist with selecting a suitable load skate configuration for your equipment, load conditions and operating environment.
