8' X 7" Steel Rim With Mini 4 On 101.6mm PCD Stud Pattern (RI08X700MN)

8' X 7" Steel Rim With Mini 4 On 101.6mm PCD Stud Pattern (RI08X700MN) - Image 2

8' X 7" Steel Rim With Mini 4 On 101.6mm PCD Stud Pattern (RI08X700MN) - Image 3

8' X 7" Steel Rim With Mini 4 On 101.6mm PCD Stud Pattern (RI08X700MN) - Image 4

8' X 7" Steel Rim With Mini 4 On 101.6mm PCD Stud Pattern (RI08X700MN) - Image 5

8' X 7" Steel Rim With Mini 4 On 101.6mm PCD Stud Pattern (RI08X700MN)

$44.93 ex. GST

$51.67 inc. GST

Available Online

8″ x 7″ steel rim with Mini 4-stud 101.6mm PCD pattern. Zero offset. Built for compact trailers and equipment using matching Mini 4-Stud pattern hubs.

Rim only, tyres and complete wheel assemblies sold separately.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

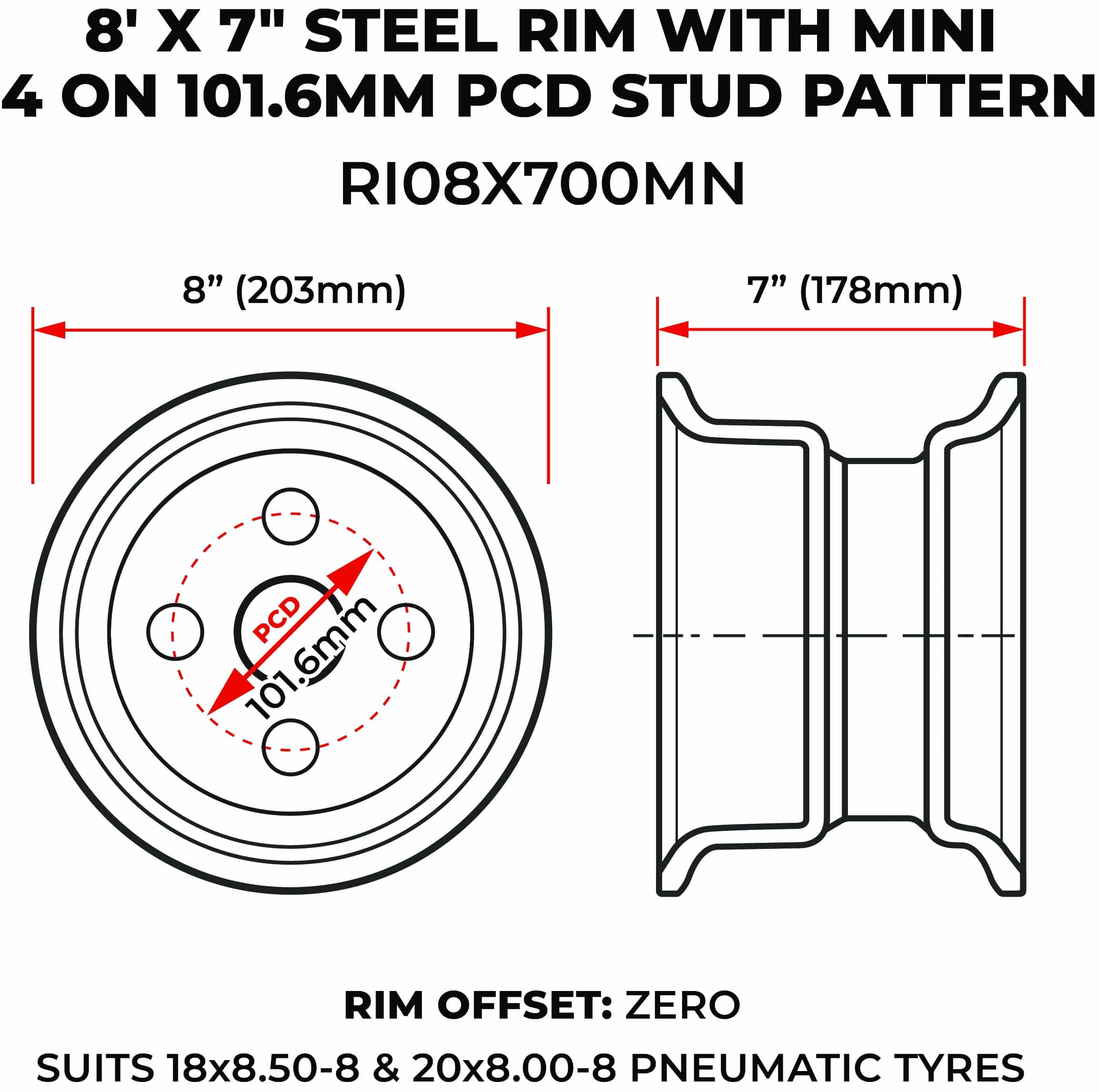

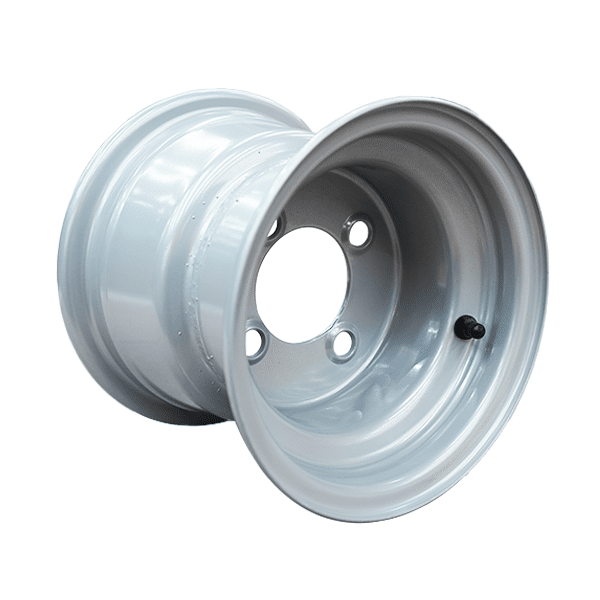

8″ x 7″ Steel Rim with Mini 4 on 101.6mm PCD Stud Pattern (RI08X700MN)

This steel rim features a 4-stud Mini pattern with a 101.6mm pitch circle diameter (PCD), making it suitable for compact trailers, garden equipment, and light-duty platforms that use Mini-compatible hubs.

The 8″ x 7″ size supports standard pneumatic tyres, while the zero-offset design ensures proper alignment with most hub and axle assemblies.

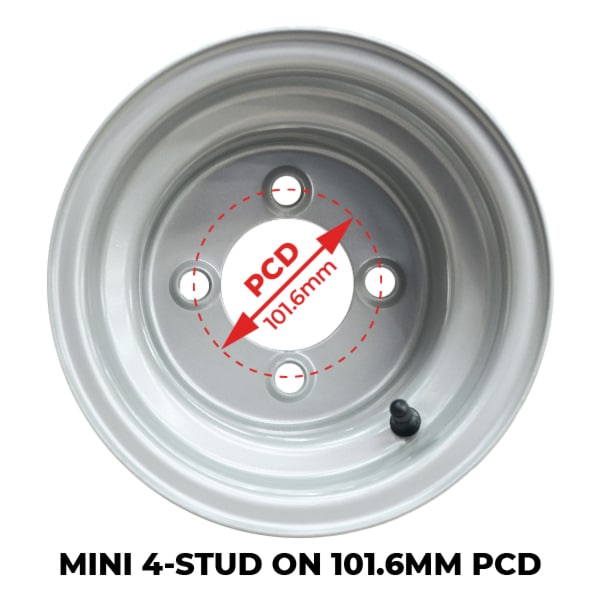

Mini 4-Stud Mounting Pattern

A Mini 4-stud mounting pattern offers a compact stud layout that suits lightweight hubs and wheels. The Mini mounting pattern features 4 bolt holes on a 101.6mm (4”) circle. It contains 4 studs evenly spaced around the rim of the wheel and provides easy installation and alignment.

This mounting pattern is commonly found on small trailers, compact mowers, golf buggies, and turf equipment.

Zero Offset Rim

A zero offset wheel means that the mounting point of the hub is in the centreline of the rim. This means the wheel is mounted equally spaced and balanced between each side of the rim for maintaining a balanced load distribution across the hub.

This type of offset is common in rear golf buggy wheels, trailers, and turf equipment.
